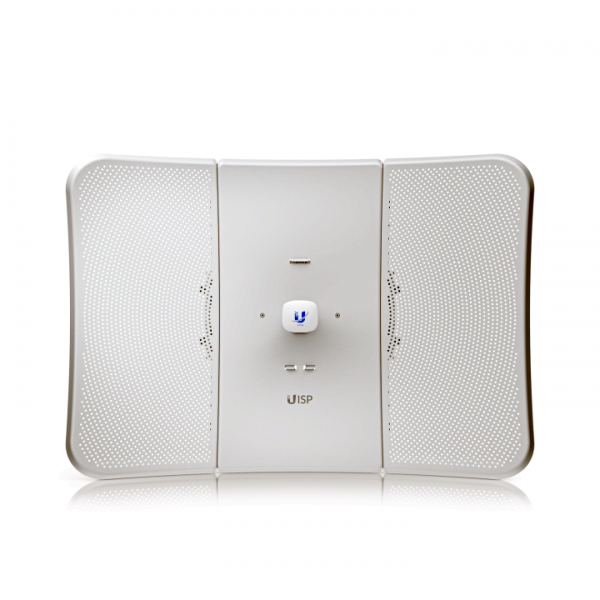

Ubiquiti 5 GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR

Preview: Ubiquiti 5 GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 213050
vendor: Ubiquiti
mnufacturer no.: LTU-XR
EAN No.: 810010073570
weight: 3.2kg
warranty: 12 months
Do you have any questions concerning this product?

5 GHz LTU client that establishes extremely long-distance wireless links with an LTU Rocket... more

Close menu

Product information "Ubiquiti 5 GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR"

5 GHz LTU client that establishes extremely long-distance wireless links with an LTU Rocket serving as its base station.

5 GHz, 30+ km link range

900+ Mbps throughput*

Dedicated spectral analysis radio

Easy to assemble

_{Note. Compatible with LTU devices only.}

_{*FW version 2.3.0 and later.}

Technische Spezifikationen

Mechanical
Dimensions	747 x 525 x 347 mm (29.41 x 20.67 x 13.66")
Weight	3.2 kg (7.06 lb)
Enclosure materials	Aluminum alloy, UV-stabilized polycarbonate
Mount material	UV-stabilized polycarbonate
Mount	Integrated pole mount (included) Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36")
Wind loading	1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing	IPX6
Hardware
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply	24V, 0.5A Gigabit PoE adapter (included)
Supported voltage range	22—26V DC
Max. power consumption	8.5W
RF connections	Internal
LEDs	Power/Ethernet
Button	Factory reset
Operating temperature	-40 to 55° C (-40 to 131° F)
Operating humidity	5 to 95% non-condensing
Certifications	FCC, IC, CE
Software
Modes	PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware.
Services	SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities	airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment	Yes
Auto power adjustment	Yes
Network	Bridge/Router* mode *Router mode is available in PtMP CPE mode only.
Security	Yes
Statical reporting	Yes
Management interface	Bluetooth management for easy setup over UISP App WEB UI
Minimum software requirements	Any modern web browser iOS™ or Android™ based smartphone
System
Maximum throughput	900+ Mbps* *FW version 2.3.0 and later.
Encryption	WPA2-PSK (AES)
Uplink/downlink ratio	25/75, 33/67, 50/50
RF
Operating frequency*	5.15 to 5.95 GHz *Depends on regulatory region.
Max. conducted TX power	25 dBm
Channel bandwidth	10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later.
Antenna gain	29 dBi
Isolation	20 dB
Beamwidth	HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt	0°
