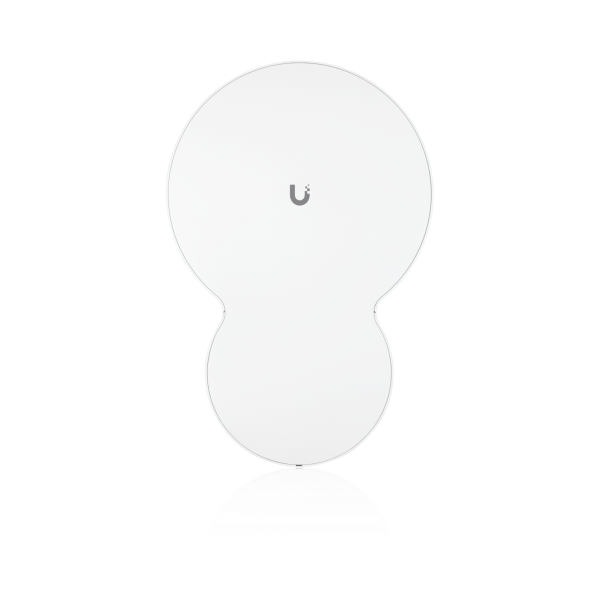

Ubiquiti AirFiber, 1.4Gbps+ Backhaul, 24GHz
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 107751
- vendor: Ubiquiti
- mnufacturer no.: AF-24
- EAN No.: 810354022043
- weight: 16.98kg
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Delivers up to 1.5+ Gbps throughput at a range of up to 13+ km.
24 GHz, 13+ km link range... more
Product information "Ubiquiti AirFiber, 1.4Gbps+ Backhaul, 24GHz"
Delivers up to 1.5+ Gbps throughput at a range of up to 13+ km.
24 GHz, 13+ km link range
1.5+ Gbps throughput
Separate integrated TX and RX antennas
Integrated GPS sync
1+ Mpps processing
Note. This product should be purchased in pairs in order to form links.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 649 x 426 x 303 mm (25.55 x 16.77 x 11.93") |
| Weight | 10.5 kg (23.15 lb) |
| Mounting | Pole mount kit (Included) |
| Wind loading | 480 N @ 200 km/h (108 lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
| Auxiliary port | (1) RJ-12, alignment tone port |
| Power method | Passive PoE |
| Power supply | 50V, 1.2A PoE GigE adapter (Included) |
| Supported voltage range | 42—58V DC |
| Max. power consumption | 50 W |
| Operating frequency | 24.05 – 24.25 GHz |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| System | |
| Max. throughput | 1.5+ Gbps |
| Ma. range | 13+ km |
| Packets per second | 1+ million |
| Encryption | 128-bit AES |
| Uplink/Downlink ratio | 50% fixed |
| RF | |
| GPS | GPS clock synchronization |
| EIRP | ~33 dBm (FCC/IC) ~20 dBm (CE) ~40 dBm (Other Regions) |
| Frequency accuracy | ±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization |
| Channel bandwidth | 100 MHz |
| Operating frequency | 24.05 – 24.25 GHz |
| Operating channels | 24.1 GHz, 24.2 GHz |
| Modulation | 64QAM MIMO 16QAM MIMO QPSK MIMO QPSK SISO ¼x QPSK SISO |
| Gain TX RX |
33 dBi 38 dBi |
| Beamwidth | < 3.5° |
| Front-to-back ratio | 70 dB |
| Polarization | Dual-slant |
| Cross-polarity Iiolation | > 28 dB |
| LEDs | |
| System | (8) Status LEDs: Data port speed Data port link/activity Configuration port speed Configuration port link/activity GPS synchronization Modulation mode Master/slave RF status (1) Two-digit LED display calibrated in dBm |
