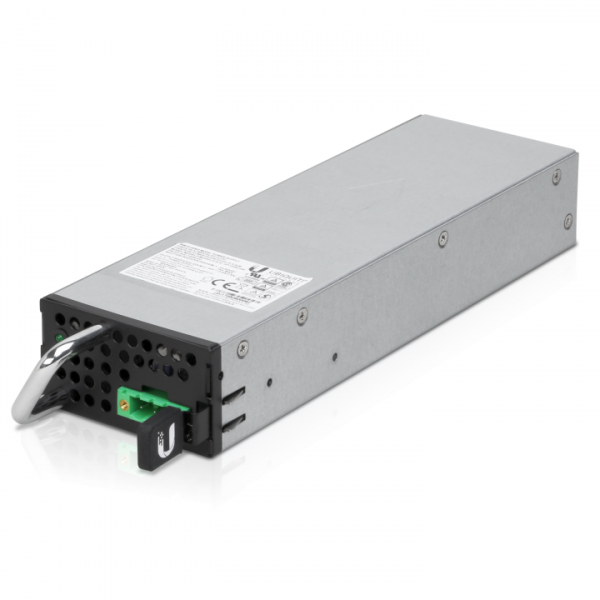

EdgePower-Module (150 W)

EdgePower-Module (150 W)
product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

PSU module designed for use with the EdgePower EP-Supply (54V 150W model) 54V, 150W max.... more
Product information "EdgePower-Module (150 W)"

PSU module designed for use with the EdgePower EP-Supply (54V 150W model)

54V, 150W max. power output

Increase total power output up to 300W

Compatible with EdgePower EP-54V-150W

EP-54V-150W-AC
Power Method AC/DC 150W for 110 - 240VAC Input, DC Terminal Block for 54V Output
Power Supply AC/DC 150W for 110 - 240VAC Input
Voltage Range AC/DC for 110-240VAC Input , 54V Output
LED System On/Off
ESD/EMP Protection Air ± 8kV; Contact ± 6kV
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
EP-54V-150W-DC
Power Method DC/DC 150W for 22 - 60V Input, DC Terminal Block for 54V Output
Power Supply DC/DC 150W for 22 - 60V Input
Voltage Range DC/DC for 22 - 60V Input, 54V Output
Battery Type 2/3/4 Series Lead Acid Battery
Maximum Charging Voltage
2 Series
3 Series
4 Series

26.8 - 27.5V
40.2 - 41.2V
53.6 - 55V
Discharge Protection Voltage 2 Series
3 Series
4 Series

21.5V
32V
43V
Charging Current
2 Series
3 Series
4 Series

0.3A
0.3A
0.2A
LED System On/Off
ESD/EMP Protection Air ± 8kV; Contact ± 6kV
Operating Temperature 0 to 40° C
(32 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
