Ubiquiti UniFi Gate Access Starter Kit / (1) Gate Hub / PoE++ adapter / UA-SK-Gate
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 232145
- vendor: Ubiquiti
- mnufacturer no.: UA-SK-Gate
- weight: 0.46kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Control a vehicle gate using the connected intercom and authorise gate access with the... more
Product information "Ubiquiti UniFi Gate Access Starter Kit / (1) Gate Hub / PoE++ adapter / UA-SK-Gate"
Control a vehicle gate using the connected intercom and authorise gate access with the number plate unlock when paired with a compatible Protect AI camera*.

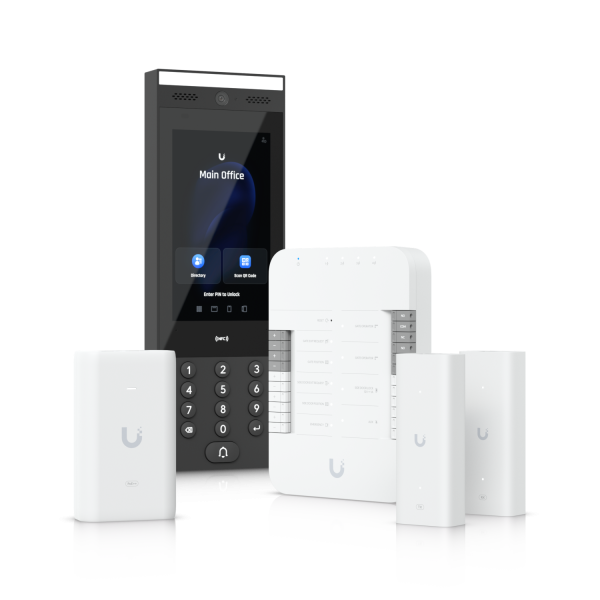

(1) Gate hub
(1) Intercom system
(1) PoE++ adapter
(2) 2-wire PoE extender
* Note : Number plate recognition is supported by cameras in the Protect AI series, with the exception of 360-degree lenses.
| UA hub gate Mechanical |
|
|---|---|
| Dimensions | 175 x 126 x 26 mm (6.9 x 5 x 1 inch) |
| Weight | 460 g (1 pound) |
| Favourite material | Polycarbonate |
| Mounting | DIN rail (included in the scope of delivery) |
| Hardware | |
| Network interface | (5) 10/100/1000 Base-T |
| Power method | PoE++ |
| Max. Power consumption | Without PoE output: 22 W With PoE output: 50 W |
| PoE input | 50 V direct current, 1 A |
| PoE output | PoE passthrough, (4) PoE, 50 V DC, max. 28 W |
| Button | (1) Factory reset |
| Digital input | Gate exit request, gate position, side exit request, side exit position, emergency |
| Dry output relay | (2) Operator: rated voltage 30 V DC, up to 1 A (1) Aux: rated voltage 30 V DC, up to 1 A |
| Powered output relay | Side release: 12 V DC, up to 1 A |
| Operating environment | Indoor use only with the device itself. Outdoor use with waterproof junction box. |
| Operating ambient temperature | -30 to 60 °C (-22 to 104 °F) |
| Humidity during operation | 5 to 90 % non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| PoE input | Pass-through white: Pending acceptance Solid blue: Accepted, device is ready Flashing white/blue: Firmware is being updated |
| PoE output | Off: Not connected or no data connection. Solid white: Connected and data connection active. |
| Input connections | Off: No cable. Solid white: Cable connected. Flashing white: Active signal. |
| Output relay | Off: No cable. Solid white: Cable connected. Flashing white: Relay tripped. |
| UA intercom system Mechanical |
|
| Maße | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1 inches) |
| Weight | Gear: 965 g (2.1 lb) Bracket: 445 g (1 lb) |
| Handle material | Aluminium alloy, UV-stabilised polycarbonate, glass |
| Mounting material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter for gooseneck base (included in the scope of delivery) Surface angle bracket, flush mounting (optional) Sun protection kit (optional) |
| Weather resistance | IP65 |
| Hardware | |
| Network interface | (1) GbE RJ45 connection |
| Connectivity | Bluetooth 4.2 NFC |
| Power method | PoE UL 294 Class 2 power-limited power supply UL 60950-1/62368-1 LPS/PS2 power supply |
| Supported voltage range | 48 V direct current |
| Max. Power consumption | 13W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor ALS sensor |
| Camera | 3264 x 2448, 8 MP H: 79.4°, V: 97.5°, T: 118.2° |
| Display | 177 mm (7") diagonal |
| Resolution | 1024 x 600 (16:9) |
| Display luminance | Max. 1000 nits (typical) |
| Touchscreen technology | Capacitive multi-touch |
| Microphone | Yes |
| Speaker | (1) 4 Ohm, 2W |
| LEDs | (1) LCM low temperature indicator: orange (LCM is switched off at temperatures below -25° C, but the system functions normally) (1) LED floodlight (13) LED backlight of the keyboard |
| Key | (1) Factory reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Operating ambient temperature | Gerät: -30 to 60 °C (-22 to 140 °F) Display:* -25 to 60 °C (-13 to 140 °F) *The display is switched off when the ambient temperature is above/below the operating temperature of the display, but other functions remain functional. (Valid from firmware v 1.0.66) |
| Operating environment | Außen area |
| Humidity during operation | 5 to 90 % non-condensing |
| Software information | The software version of a product can be checked at https://unifi.ui.com üft. |
| UL 294 level | First attack: Level I Line safety: Level I Endurance: Level I Standby power: Level I |
| UL 294 declaration | Compliance with IEEE 802.3 specifications has not been verified under UL 294. The equipment shall comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| Requirements for PoE cabling | The recommended minimum power category is cable 5e. The power category used should correspond to the transmission speed required at the installation site. The minimum conductor cross-section for the connection between PSE or Power Injector and PD is 26 AWG (0.13 mm2 ) for patch cables; 24 AWG (0.21 mm2 ) for horizontal or riser cables. |
| CAN/ULC-60839-11-1 quality | Note assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number and issue date or revision status | UA intercom system, V01 |
| UACC-Extender-2Wire-PoE-Tx/Rx Mechanical |
|
| Dimensions | 40 x 105 x 25 mm (1.6 x 4.1 x 1 inch) |
| Weight | PoE input: 77 g (2.7 oz) PoE output: 79 g (2.8 oz) |
| Housing material | Polycarbonate |
| Mounting material | Polycarbonate |
| Hardware | |
| Network interface | (1) 10/100 MbE (1) Homeplug AV |
| Power method | PoE++ |
| Max. Power consumption | 3 W (without PoE output) |
| PoE input | (1) PoE++, 50 V direct current, max. 1.2 A |
| PoE output | (1) PoE+, 48 V direct current, 0.72 A |
| ESD/EMP protection | Air: ±8kV, contact: ±4kV |
| LED | White |
| Operating ambient temperature | -10 to 40 °C (14 to 104 °F) |
| Humidity during operation | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| U-PoE++ Specifications |
|
| Model | U-PoE++ |
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3 inches) |
| Weight | 210 g |
| Output voltage | 48 V DC at 1.25 A |
| LAN activity indicator | NO |
| Gigabit LAN connection | Yes |
| Remote reset function | NO |
| Reset button | NO |
| Nominal voltage | 100240 V alternating current at 50/60 Hz |
| Input current | 1.3 A with 120 V alternating current, 0.75 A with 230 V alternating current |
| Inrush current | <100 A peak at 120 V AC <200 A peak at 230 V AC |
| Efficiency | 85+ % |
| Output ripple | 1% max |
| Switching frequency | 65 kHz |
| Line control | = 1 % |
| Load control | = 3 % |
| 2-pair power supply | NO |
| 4-pair power supply | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC connection | IEC-320 C6 |
| Data input/PoE | RJ45 shielded socket |
| &overvoltage protection | Difference and common mode |
| Clamp protection | 11 V data, 60 V current |
| Max. Surge discharge | 1500A (8/20 µs) power |
| Peak pulse current | 36A (10/1000 µs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Power method | Universal AC input, 100240 V AC, 50/60 Hz |
| Power supply | Alternating current/direct current |
| Supported voltage range | 100240 V alternating current |
| Max. PoE+ power per port through PSE | 60 W |
| Operating ambient temperature | 0 to 40 °C (32 to 104 °F) |
| Storage temperature | -30 to 70 °C (-22 to 158 °F) |
| Humidity during operation | 10 to 95 % non-condensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
| Software | |
| Administrative application | UniFi Access: Version 2.1.5 and higher UniFi Protect: Version 4.0.33 and higher |
