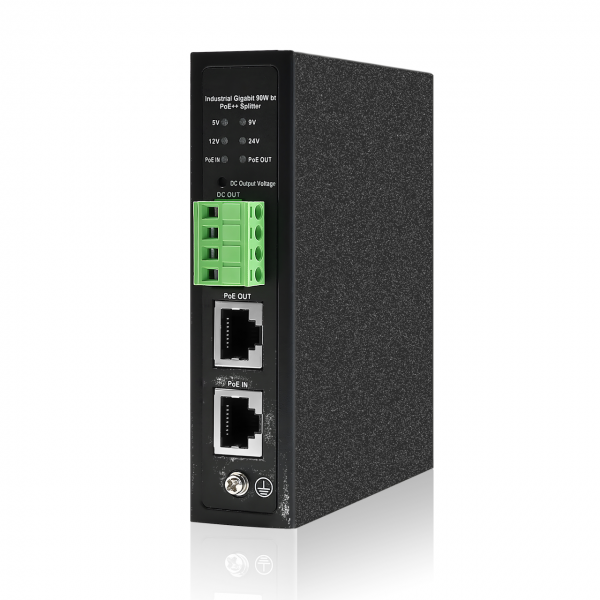

ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD

Highlight:

• Comply with IEEE 802.3i/u/ab
• 1 GbE RJ45 PoE Input
• 1 GbE RJ45 PoE Output
• 4 PIN phoenix terminal, splits PoE over into DC Output
• 5V/9V/12V/24VDC power output adjustable
• Support IEEE 802.3af/at/bt
• Output Total Power Max.72W
• Three rail-mounted designs
• Operating Ambient Temperature: -40 to 75°C

Description:

ALL-PSI104G-BT90-PD splits 48VDC into 5V/9V/12V/24VDC power outputs via RJ45 Ethernet cable. Support for PoE applications in Gigabit Ethernet environments. Complies with IEEE 802.3af/at/bt power classification and supports conversion to DC output and PoE direct output. BT has a maximum output power of 72W.

Features

• Complies with IEEE802.3af, IEEE802.3at, IEEE802.3bt.

• Support PoE applications in Gigabit Ethernet environments.

• Auto-Sensing Algorithm enables taking power from IEEE802.3af/at/bt PSE.

• Splits the 48VDC power over RJ45 Ethernet cable into different DC output.

• Support wide input voltage range 44Vdc to 57Vdc.

• Maximum power output up to 72W.

• Support for the POE output of IEEE 802.3af/at/bt.

• Adjustable output 5VDC/14A or 9VDC/7.8A or 12VDC/5.9A,24VDC/3A.?

• Thermal cut off.

• Short-circuit protection.

• High efficiency DC/DC converter.

• LED indicators for power input indication.

• Plug-and-Play.
