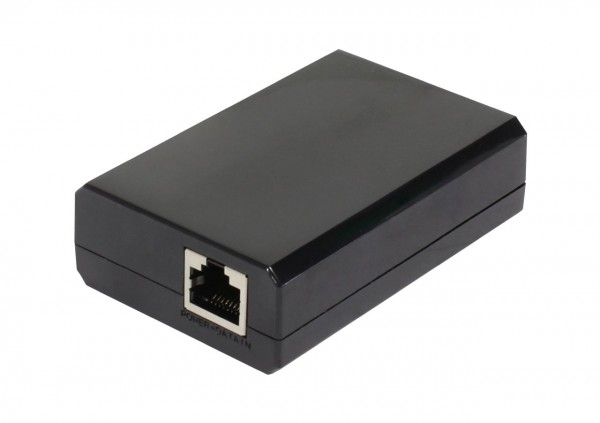

ALLNET PoE Splitter-Mini/Extractor / Gigabit / 60W / USB-C PD / ALL-PS103G-BT60-PD
- stock: 0
- part no.: 212073
- vendor: ALLNET
- mnufacturer no.: ALL-PS103G-BT60-PD
- EAN No.: 4038816212078
- weight: 0.1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
Handbuch EN
EU RoHS und REACH Erklärung
IEEE 802.3bt compliant (PoE++ / 4PPoE), RJ45 input and output ports, up to 45W USB-C output port, plastic housing
Hightlights:
- Charges end devices with USB-C power input such as notebooks, Macbook Pro®, tablets, smartphones from an IEEE 802.3bt/at/af PoE connection
- Provides Gigabit Ethernet jack for an RJ45 network capable end device
- PoE power budget of 45W max. at 60W input current via IEEE 802.3bt connection from PoE BT switch or injector connected in front of it
- Output DC5V/4A,9VDC/3A, 12VDC/3A, 15V3A, 20V2.5A
- Thermal shutdown
- Over voltage protection (OVP)
- Over current protection (OCP)
- Short circuit protection (SCP)
The ALL-PS103G-BT60-PD splits the data and power from PoE to Type-C devices. It supports PoE applications in Gigabit Ethernet environments.
The ALL-PS103G-BT60-PD is compliant with IEEE802.3af/at/bt power classification. Wide input voltage range, 36Vdc to 57Vdc. The maximum output power can reach 50W, and the output voltage ranges from 5V to 20V, according to the requirements of your Type-C PD end devices, such as computer, IPad, Macbook, Google Wifi, etc.
Technical Details:
|
Item |
Description |
|
Ports |
1x 10/100/1000M RJ45 PoE Port (DATA + POWER IN) 1x 10/100/1000M RJ45 LAN Port (Only DATA) 1x Type-C USB (DC OUT) |
|
Network Media |
10Mbps: Cat 3,4,5 Unshielded Cable 100Mbps: Cat 5,5E Unshielded Cable 1000Mbps: Cat 5E, 6 Unshielded Cable |
|
Pass Through Data Rates |
10/100/1000 Mbps |
|
Power Output |
DC5V/3.4A, 9VDC/3A, 12VDC/3A, 15V3A, 20V2.5A |
|
Input Power Requirements |
IEEE802.3af 15W PoE Type 1 Class 3 |
|
Indicators |
PoE ready / in-use |
|
Connectors |
Shielded RJ-45, EIA 568A and 568B |
|
Dimensions |
80x54x24mm |
|
Environmental Conditions |
Operating Ambient Temperature:0 to 40? Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-20 to 70? Storage Humidity: Maximum 95%, Non-condensing |
|
Regulatory Compliance |
IEEE 803.3bt (60W PoE) IEEE 802.3at (30W PoE) IEEE 802.3af (15W PoE) IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) RoHS Compliant, CE, FCC |
