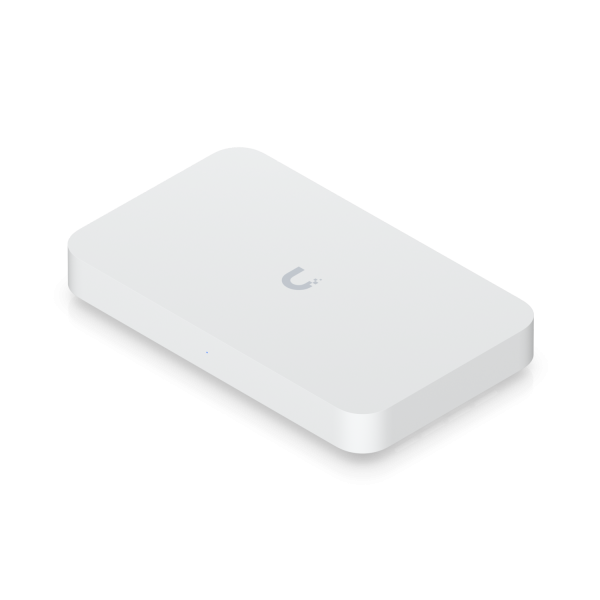

Ubiquiti UniFi Gateway Fiber • 5 Gbps • 1x 10GbE • 4x 2.5GbE • 1x PoE+ • 2x SFP+ • UXG-Fiber
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 243346
- vendor: Ubiquiti
- mnufacturer no.: UXG-Fiber
- weight: 0.605kg
- warranty: 12 months
- Do you have any questions concerning this product?

Highlights:
Managed with a CloudKey, official UniFi hosting or UniFi network server
5... more
Product information "Ubiquiti UniFi Gateway Fiber • 5 Gbps • 1x 10GbE • 4x 2.5GbE • 1x PoE+ • 2x SFP+ • UXG-Fiber"
Highlights:
- Managed with a CloudKey, official UniFi hosting or UniFi network server
- 5 Gbit/s routing with IDS/IPS
- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
Technical data:
Mechanical | |
---|---|
Dimensions | 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2 inches) |
Weight | 605 g |
Favourite material | Polycarbonate |
Hardware | |
Processor | Quad-core ARM® Cortex®-A73 with 2.2 GHz |
Memory information | 2 GB DDR4 |
Management interface | Ethernet Bluetooth |
Network interface | LAN: (1) 10G SFP+ port (4) 2.5 GbE RJ45 ports WAN: (1) 10G SFP+ port (1) 10 GbE RJ45 port |
PoE interface | (1) PoE+ (pair A 1, 2+; 3, 6-) |
IDS/IPS throughput | 5 Gbit/s |
Power method | Power supply unit, 54 V DC, 1.1 A |
Supported voltage range | 100–240 V alternating current |
Max. Power consumption | 25 W (without PoE output) |
PoE budget | 30 W |
Max. PoE power per port through PSE | 30 W |
Power range PoE mode | 50–57 V direct current |
ESD/EMP protection | Air: ± 4 kV, contact: ± 8 kV |
Button | (1) Factory reset |
Ambient temperature | 0 to 40 °C (32 to 104 °F) |
Humidity during operation | 5 to 95 % non-condensing |
Certifications | CE, FCC, IC |
Gateway functions | |
Performance | WiFi QoS with UniFi APs Application-, domain- and country-based QoS Application and device type identification Internet quality and outage reporting |
Next generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain and advert filtering VLAN/subnet-based traffic segmentation Complete stateful firewall |
Advanced networking | Licence-free SD-WAN* WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN Policy-based WAN and VPN routing DHCP relay Customisable DHCP server IPv6 ISP support |
LEDs | |
Status | White;/Blue |
Ethernet | Grün: Connection/activity . Yellow: PoE-powered |
SFP+ | Grün: Link/Activity |
