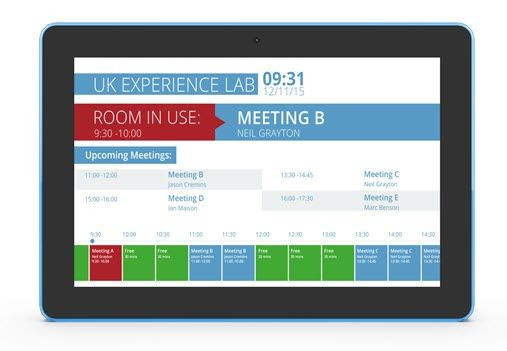

ALLNET meeting room RGB LED tablet 10 inch RK3568 Android 11 and NFC, color black
- stock: 0
- part no.: 205818
- vendor: ALLNET
- mnufacturer no.: MeetOne-100
- EAN No.: 4038816109156
- weight: 1.419kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
ALLNET Meeting Room RGB LED Tablet 10 inch RK3568 Android 11 and NFC, colour black
Includes power supply unit and integrated snap-in wall bracket with theft protection. RGB LED for displaying e.g. warning signals, occupancy of meeting rooms etc.
The NFC also makes it very easy to implement time recording terminals or info terminals with ID, such as multi-party residential complexes.
Currently tested Android time terminal software:
| PDS time | works, but config file must be imported manually, camera is not addressed |
| AIDA time | works with our article numbers 174715/174716/174717/174888 and 182897 according to the manufacturer |
We are happy to provide the API/SDK for NFC/RFID and LED on request.
For further information, please refer to the NFC data sheet.
| System | CPU | RK3568,Quad-core cortex A55,1.6G | ||
| RAM | 4GB | |||
| Internal memory | 16GB | |||
| Operation system | Android 11 | |||
Display |
Touch screen | 10-Point capacitive touch | ||
| Panel | 10.1"LCD panel | |||
| Resolution | 1280*800 | |||
| Active area | 217.4(H)x136.4mm(V) | |||
| Display mode | Normally black ,IPS | |||
| Viewing angle | 85/85/85/85/85(L/R/U/D) | |||
| Contrast ratio | 800 | |||
| Luminance | 280cd/m2 | |||
| Aspect Ratio | 16:10 | |||
| Network | WiFi | 2.4/5GHz 802.11a/b/g/n | ||
| Ethernet | 100M/1000M ethernet | |||
| Buletooth | Bluetooth 5.0 | |||
| Interface | Card slot | SD card | ||
| USB | USB Host | |||
| Micro USB | Micro USB OTG | |||
| USB | USB for serial | |||
| RJ45 with POE | RJ45 | |||
| POE | IEEE802.3at | |||
| Power jack | DC power input | |||
| Earphone | 3.5mm earphone | |||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K | ||
| Audio format | MP3/WMA/AAC etc. | |||
| Photo | jpeg, png, etc. | |||
| Other | VESA | 75x75mm | ||
| NFC | NFC with 13.56MHz | |||
| Camera | 2.0M/P,Front camera | |||
| Microphone | Microphone | |||
| Speaker | 2*1.5W | |||
| LED Light bar | LED light bar with RGB and mixed colour | |||
| Working temp | 0--40degree | |||
| Certificates | CE/FCC/RoHS | |||
| Language | Multi-language | |||
| Accessories | Adapter | Adapter,12V/1.5A | ||
| User manual | yes | |||
| Unit (Without packaging) | Giftbox (With Packaging) | Carton 5pcs/CTN | ||||||
| L | W | H | L | W | H | L | W | H |
| 259.36mm | 178.36mm | 28mm | 390mm | 220mm | 68mm | 405mm | 363mm | 240mm |
| Net(kg) | 0.74KG | Net(kg) | 2.3KG |
|
||||
Produktmerkmale:
| Abmessung: | 259.36 x 278.36 x 28 |
| Alternative Betriebssysteme: | Linux |
| Arbeitsspeicher (RAM): | 8 |
| Auflösung Panel: | 1280x800 |
| Betriebssystem: | Android 11 |
| Bluetooth: | ja |
| Chipset: | RK3568 |
| Diagonale: | 10 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 32 |
| Kamera: | ja |
| Mobilfunk: | nein |
| Montageart: | integrierte Halterung |
| NFC&RFID: | 13,56MHz |
| Produktart: | Tablet |
| Stromversorgung: | PoE&Netzteil |
| WLAN: | 2,4&5 |
