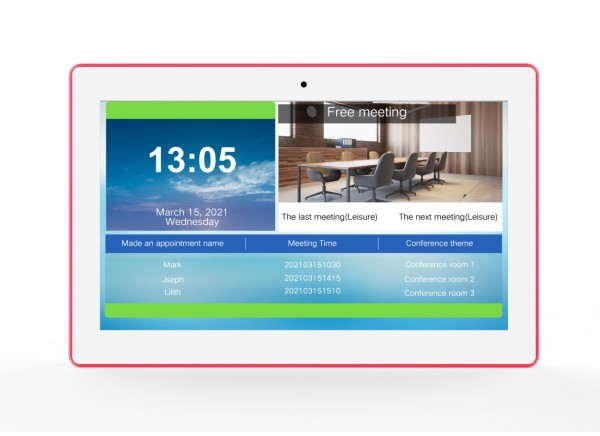

ALLNET meeting room RGB LED tablet 15 inch RK3399 white Android 10 and NFC/RFID
- stock: 0
- part no.: 200867
- vendor: ALLNET
- mnufacturer no.: MT15RK3399A10WPoENFC
- EAN No.: 4038816107268
- weight: 3.4kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
EU RoHS und REACH Erklärung
ALLNET Meeting Room LED Tablet 15 inch RK3288 Android 8/10 and RFID (NXP Mifare, Desfire)
Including power supply and integrated snap-in wall mount with anti-theft protection. RGB LED for displaying e.g. warning signals, occupancy of meeting rooms etc.
Through the NFC can also be implemented very well time recording terminals or info terminals with ID, such as multi-party apartment complexes.
Currently tested Android time terminal software:
| PDS Zeit | funktioniert, Configfile muss aber manuell eingespielt werden, Kamera wir nicht angesprochen |
| AIDA-Zeit | funktioniert laut Hersteller mit unseren Artikelnummern 174715/174716/174717/174888 u. 182897 |
We will gladly provide the API/SDK for NFC/RFID and LED on request.
Specifications NFC: NXP PN7150
PN7150 is a full-featured NFC controller solution with integrated firmware and NCI interface, for contactless communication on 13.56 MHz. It is compatible with the requirements of the NFC Forum.
PN7150 was developed based on lessons learned from previous generations of NXP NFC devices. It is the ideal solution for quickly integrating NFC technology into any application, especially those using O/S environments such as Linux and Android.
- Full NFC forum compliance with small form factor antenna.
- Embedded NFC firmware that provides all NFC protocols as a pre-integrated feature
- Direct connection to main host or microcontroller, through physical I2C bus and NCI
protocol
- Ultra-low power consumption in polling loop mode
- High efficiency integrated power management unit (PMU)
- Supported RF protocols
– NFCIP-1, NFCIP-2 protocol (see [8] and [11])
– ISO/IEC 14443A, ISO/IEC 14443B PICC, NFC Forum T4T modes via host interface (see [3])
– NFC Forum T3T via host interface
– ISO/IEC 14443A, ISO/IEC 14443B PCD designed according to NFC Forum digital protocol T4T platform and ISO-DEP
– FeliCa PCD mode
– MIFARE PCD encryption mechanism (MIFARE Classic 1K/4K)
– NFC Forum tag 1 to 5 (MIFARE Ultralight, Jewel, Open FeliCa tag, MIFARE DESFire) (see [1])
– ISO/IEC 15693/ICODE VCD mode (see [9])
For more information, please refer to the NFC data sheet.
Produktmerkmale:
| Arbeitsspeicher (RAM): | 2 |
| Betriebssystem: | Android 10 |
| Bluetooth: | ja |
| Chipset: | RK3399 |
| Diagonale: | 15,6 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | weiß |
| Farbe Gehäuse: | weiß |
| Hauptspeicher: | 16 |
| Kamera: | ja |
| Mobilfunk: | nein |
| Montageart: | integrierte Halterung |
| NFC&RFID: | 13,56MHz |
| Produktart: | Tablet |
| Stromversorgung: | PoE&Netzteil |
| WLAN: | 2,4&5 |
