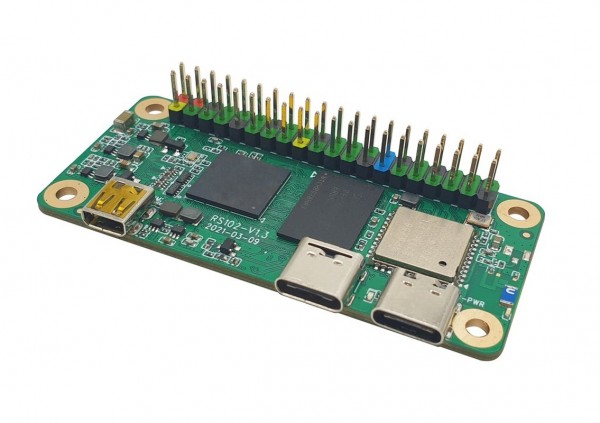

Radxa Zero 4GB/16GB D4E16H, Pinleiste gelötet, Antenne onboard

Amlogic S905Y2 64bit quad core based Mini SBC

Quadcore power with up to 4GB LPDDR4 RAM with the dimensions of an USB-stick.

Available Models:

RADXA Zero product details

Amlogic S905Y264bit quadcoreprocessor

Quad Cortex-A53, frequency 1.8Ghz, 12nm

GPU

Mali G31 MP2 GPU, supports OpenGL ES 1.1 /2.0 /3.1 /3.2, Vulkan 1.1, Open CL 1.1 1.2, 2.0 Full Profile

Memory LPDDR4

64bit dual channel LPDDR4@3200Mb/s, 1GB/ 2GB or 4GB

Wifi/BT Antenna

Wifi/BT with external antenna support*

* WIFI4/BLE4 and WIFI4/BLE5 available for different models!

Storage eMMC 5.1

soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB

Micro SD card

uSD slot supports up to 128G uSD card

Display Micro HDMI

HDMI 2.1, 4K@60 HDR

Peripherals

 HD codec H265/VP9 decode 4Kx2K@60

USB 3.0 Type-C HOST x1

USB 3.0 HOST

dedicated USB3.0 channel

USB 2.0 Type-C OTG x1

 USB 2.0 OTG

Network (depending on the model)

Wireless 802.11 abgn wifi 2.4GHz, Bluetooth 4.2

Wireless 802.11 ac wifi 2.4/5GHz, Bluetooth 5.0

IO 40-pinexpansionheader :

- 1 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Others

Crypto Engine

one button

Size 66mm x 30mm

Essentials You Need

• RADXA ZERO
• Power adapter with USB type C port equal or larger than 5W
• MicroSD Card or onboard eMMC module
• Keyboard & Mouse
• Monitor with HDMI input
