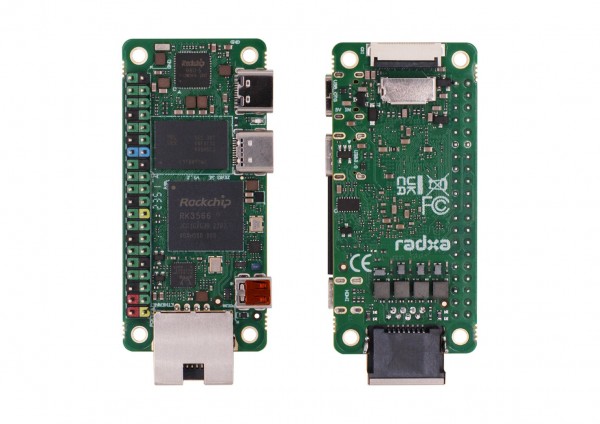

Radxa Zero 3E, Header mounted, 4GB DDR4

Rockchip RK3566 64bit quad core based Mini SBC

Quadcore power with up to 8GB LPDDR4 RAM with the dimensions of an USB stick.

RADXA Zero 3E product details

Rockchip RK3566 64bit quadcoreprocessor

Quad-core Arm® Cortex®-A55 (ARMv8) 64-bit @ 1.6GHz

GPU

Arm Mali™-G52-2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0

Memory LPDDR4

LPDDR4 1GB /2GB /4GB /8GB

Micro SD card

TF Card Slot

Display Micro HDMI

1080p@60fps via Micro HDMI

H.264/H.265 decoder up to 4K@60fps

H.264/H265 encoder up to 1080p@60fps

USB 3.0 Type-C HOST x1

USB 3.0 HOST

USB 2.0 Type-C OTG x1

Micro USB 2.0 OTG (for power and data)

MIPI CSI x1

MIPI CSI Camera Interface (4-lane MIPI CSI)

Network

Gigabit Ethernet with PoE support (additional PoE HAT required)

IO 40-pinexpansionheader:

- up to 5 x UART
- 1 x SPI bus
- up to 2 x I2C bus
- 1 x PCM/I2S
- up to 6 x PWM
- up to 28 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Software

- ARMv8 Instruction Set
- Debian/Ubuntu Linux support
- Hardware access/control library for Linux

Others

Size 65mm x 30mm

Operating Temperature 0-50° C

Essentials You Need

• RADXA ZERO 3E
• Power adapter with USB type C port equal or larger than 5W (DC 5V/1A)
• MicroSD Card or onboard eMMC module
• Keyboard & Mouse
• Monitor with HDMI input
• opt. PoE HAT

______________________________________________________

Additional information & Setup instructions

https://docs.radxa.com/zero/zero3/getting-start
