DRAGINO · Gateway · LoRa · Indoor IoT Gateway · MS20-EU868

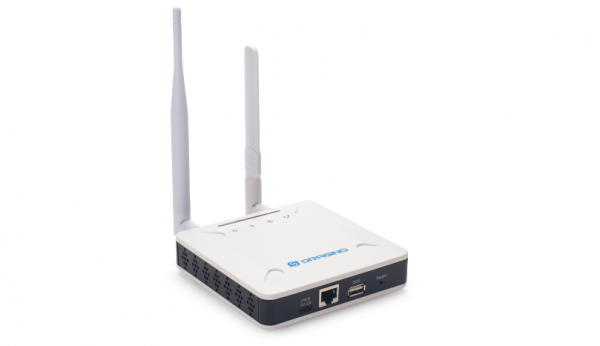

MS20 is an open source Linux box that is designed as a generic IoT gateway for various IoT applications.

MS20 is equipped with a quad-core Cortex-A7 1.2Ghz CPU, 512MB RAM, 4GB eMMC memory and an SD card slot. MS20 supports various types of network connections such as Ethernet, WiFi and an optional 4G connection. The MS20 has internal GPIOs and a USB interface that developers can use to develop customised modules for their IoT applications.

The operating system running on the MS20 is Armbian (an embedded version of Debian), which is easy to maintain. The operating system is fully open source, allowing users to develop different types of software. There is also some very useful pre-installed software such as Web UI, Node-Red, remote management, network management and auto-update for quick start of deployment and maintenance.

Technical data

Hardware:

•  CPU: Quad-Core Cortex-A7 1.2Ghz
•  WORKING MEMORY: 512MB
•  eMMC memory: 4GB

Interfaces:

• 10M/100M RJ45 ports x 1
• Multi-channel LoRaWAN wireless
• WiFi 802.11 b/g/n
• Mini-Pcie slot for mobile phone connection (since hardware v1.3)
• External USB host x 1
• SPI/I2C interface via GPIOs and internal USB slot
• .

Operating conditions:

• Working temperature: -20 ~ 65°C
• Storage temperature: -20 ~ 65°C
• Power input: 5V, 2A, DC

Functions:

• Open source Debian system
• Managed via Web GUI, SSH via WAN or WiFi
• Remote management
• Auto-provisioning for batch provisioning and management
• CPU: Quad-Core Cortex-A7 1.2Ghz
• RAM: 512MB
• eMMC memory: 4GB
• 10M/100M RJ45 connections x 1
• Multi-channel LoRaWAN wireless
• WiFi 802.11 b/g/n
• Mini-Pcie slot for mobile phone connection (since hardware v1.3)
• External USB host x 1
• SPI/I2C interface via GPIOs and internal USB slot
• .
