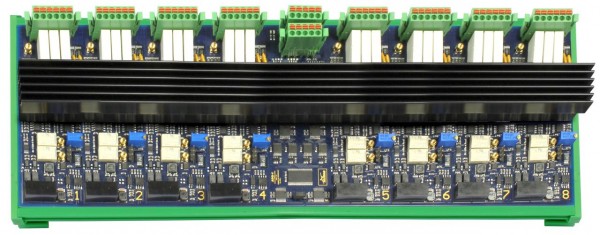

ALLDAQ ADQ-48 (V1.5) / programmable current sink with 8 potential-free channels / continuous power 20W / resolution 1mA (16bit DAC)***

Potential-free 8-channel current sink

This module from ALLDAQ’s series of multi-channel current sinks is ideal for generating different loads individually isolated in the smallest of spaces

.

Features

• Module with 8 individually isolated current sinks
• .
• Controllable via I²C or analogue (via potentiometer or external control voltage)
• Address configuration via a rotary switch
• Continuous power 20W
• Peak power 100W
• Resolution 1mA (16 bit DAC)
• Up to 36V source voltage
• 12V supply voltage
• Measurement of current and voltage (16 bit ADC) per channel
• Sense line for monitoring the source voltage
• Up to 40°C ambient temperature (passively cooled)
• Emergency temperature switch-off with signal LED (readable via I²C)
• All plugs locked in place
• Cascadable up to 8 boards per I²C bus
