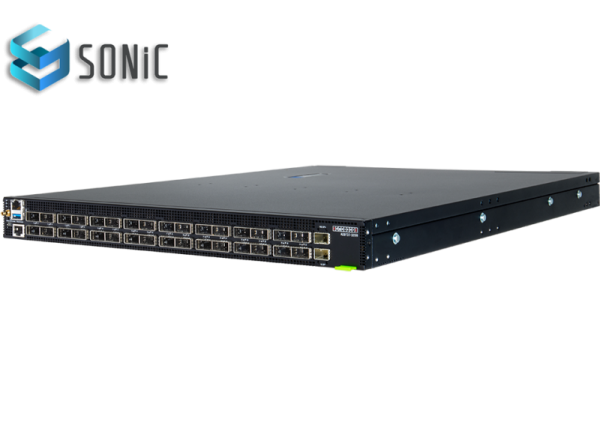

EdgeCore Switch full manged 32 Port • 32 x 400G QSFP-DD • 19" 1 HE • Datacenter Switch • Back-to-front • DCS511 • 9737-32DB-O-AC-B

EdgeCore DCS511 • 9737-32DB-O-AC-B, 32 x 400G QSFP-DD ports, Broadcom Tomahawk 4 12.8Tbps ASIC, Quad-core Intel Xeon® D1713NTE CPU, dual hot-swappable 1500W AC PSUs and 5+1 Fan Modules with Rear-to-Front airflow, rack mount kit (Front and back), 3 years Hardware Warranty

Features

• Next Gen I²C Design
• QSFP56-DD switch ports, each supporting 1 x 400G QSFP56-DD, 1 x 100G QSFP28, 1 x 40G QSFP+, or via breakout cables 2 x 200G (2 x 4 lanes 50G PAM4), 4 x 100G (4 x 2 lanes 50G PAM4), 2 x 50G (2 x 2 lanes 25G NRZ), 4 x 25G NRZ, or 4 x 10G NRZ
• Supports hot/cold aisles with front-to-back or back-to-front airflow SKUs
• All ports on front; PSUs and fans accessible from rear
• Hot-swappable, load-sharing, redundant 1500W AC or 48VDC PSUs
• Higher optical segment support
• Supports 400G ZR/Open ZR+ coherent transceivers in the upper 16 QSFP56-DD ports
• Contains e-fuses to protect individual transceivers
• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings
• Supports VXLAN

Compatible Software Option

• SONiC
