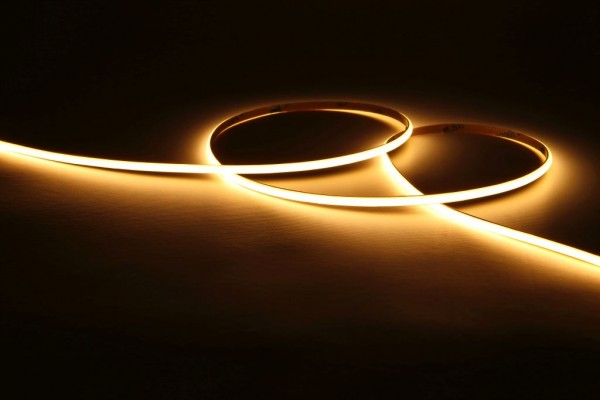

Synergy 21 LED Flex Strip COB - WW DC24V 40W CRI>90 SLIM V2
- stock: 0
- part no.: 241870
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-003F250071
- EAN No.: 4038816241870
- weight: 0.2kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip with COB chip - SLIM 4mm wide and 2mm high
Length: 5m
Voltage: 24V DC
Watt: 8W/m, 40W
Light colour: warm white, 3000K, CRI>90
Brightness: 700lm/m Total: 3500lm
SDCM<3
Protection class: IP20
Number of LEDs: 480/m, total: 2400LEDs
Coolable every 50mm
Dimension: 5000*4*2mm
Adhesive tape: yes 3M on the back
Strip can be cut at the cut marks with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split the strip when there is no power.
Our 3M adhesive tape adheres well, but is still only to be regarded as a mounting aid. There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed. No guarantee can be given for overheated LED Strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 1.60 |
| Betriebstemperatur: | -20 bis +50 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | ja |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 4mm |
| LED Strip Chip Typ: | COB |
| LED Strip Höhe: | 2mm |
| LED Strip Länge: | 5000mm |
| LED Strip kürzbar: | 50mm |
| Lichtfarbe: | superwarmweiß |
| Lichtfarbe in Kelvin: | 2700 |
| Lumen: | 3360 |
| Lumen-Effizienz: | 84 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 40 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 57.50 |
| Lumen: | 3500.00 |
| Watt: | 40.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
