ALLNET GSM antenna 1.1~4.1dbi SISO Omni-Antenna Indoor 2.6m SMA-M Straight ALL19104... more

Product information "ALLNET GSM-Antenne 1.1~4.1dbi SISO Omni-Antenna Indoor 2,6m SMA-M Gerade ALL19104"

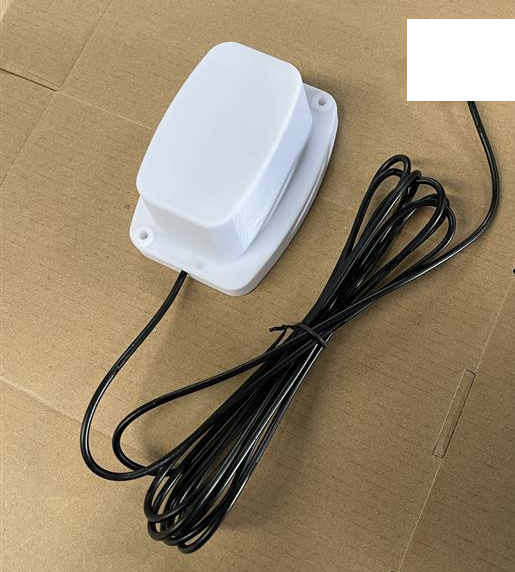

ALLNET GSM antenna 1.1~4.1dbi SISO Omni-Antenna Indoor 2.6m SMA-M Straight ALL19104

Highlights:

Hybrid Linear Polarisation Multi-Bands 694-960MHz, 1450-2690MHz, 2690-3300MHz, 3300-6000MHz,
Frequency band: 694-960MHz, 1450-2690MHz, 2690-3300MHz, 3300-6000M bands
Gain: Nominal 1.1dbi ~4.1dbi
Polarisation: Hybrid Linear Polarisation
Connection: 1x SMA male
Cable length: 1x 2.6m low loss cable
Mounting: Wall mounting / magnetic mounting & 3M double-sided adhesive tape
Dimensions: 100x70x45mm

Application:

5G 4G indoor/in-building IoT, navigation, tracking

ISM, M2M,CDMA, GSM, DCS, 3G/UMTS, WiFi, ISM Application

Features:

Low, aestheticall pleasing profile

2. Radio Pattern, Measured with 2.6m Low Loss cable

Horizontal

Vertical

3.1 Gainlist, measured with 2.6m Low Loss cable, on 30cm * 30cm Metal Plate

3.2 Efficiency, measured with 2.6m Low Loss cable, on 30cm * 30cm Metal Plate

4.1 Gainlist, measured with 2.6m Low Loss cable, in Free Space

4.2 Efficiency, measured with 2.6m Low Loss cable, in Free Space

5.1 VSWR. Measured with 2.6m Low Loss cable

5.2 Return Loss. Measured with 2.6m Low Loss cable
