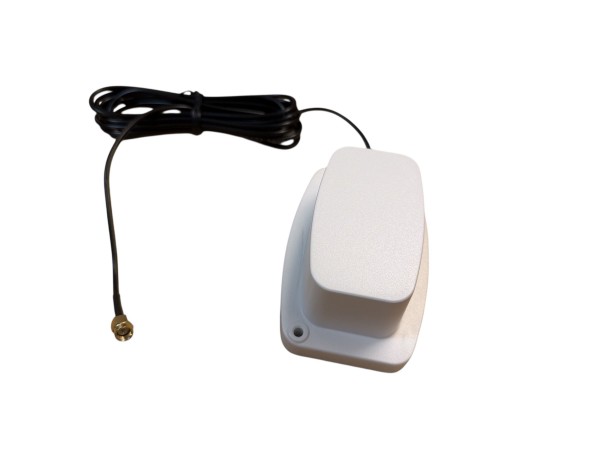

ALLNET GSM-Antenne 1.1~4.1dbi SISO Omni-Antenna Indoor 2,6m SMA-M Gerade ALL19104
- stock: 0
- part no.: 244065
- vendor: ALLNET
- mnufacturer no.: ALL19104
- EAN No.: 4038816145161
- weight: 0.2kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
ALLNET GSM Antenna 1.1~4.1dbi SISO Omni Antenna Indoor 2.6m SMA-M Straight ALL19104
Highlights:
- Broadband multi-band antenna for 5G / 4G / GSM / WiFi / ISM applications
- Hybrid linear polarisation multi-band 694-960MHz, 1450-2690MHz, 2690-3300MHz, 3300-6000MHz, for optimum performance in indoor environments
- Frequency band: 694-960MHz, 1450-2690MHz, 2690-3300MHz, 3300-6000MHz
- Amplification: Nominal 1.1dbi ~4.1dbi
- Polarisation: Hybrid linear polarisation
- Connection: 1x SMA connector/male
- Cable length: 1x 2.6m low-loss cable with SMA-M connector
- Mounting: Wall mounting / magnetic attachment & 3M double-sided adhesive tape
- Compact, flat housing design for inconspicuous installation
- Dimensions: 100x70x45mm
- Ideal for IoT, M2M, tracking, navigation and mobile routers
ALLNET GSM / 4G / 5G indoor multi-band antenna – 1.1–4.1 dBi, SISO Omni, 2.6 m cable, SMA connector (ALL19104)
The ALLNET ALL19104 is a compact and versatile indoor multiband antenna for modern mobile radio and IoT applications. Thanks to its broad frequency spectrum from 694 to 6000 MHz, it supports numerous radio standards such as 5G, 4G/LTE, GSM, UMTS as well as WiFi and ISM applications and is ideal for improving the mobile radio connection in buildings.
The antenna works with hybrid linear polarisation and therefore enables reliable signal transmission even in demanding indoor environments. With an antenna gain of up to 4.1 dBi, it ensures stable reception and transmission performance for IoT, M2M, tracking or navigation applications.
For flexible installation, the antenna has a 2.6 m long low-loss cable with SMA connector. It can be mounted either magnetically, with screws or with a 3M adhesive pad. The flat and unobtrusive design enables discreet integration into almost any environment.
This makes the ALL19104 particularly suitable for routers, gateways, industrial IoT devices or mobile radio terminals where reliable indoor signal supply is required.
Features:
Flat, aesthetically pleasing profile
2nd radio pattern, measured with 2.6m low-loss cable
Horizontal
Vertical
3.1 gain list, measured with 2.6m low loss cable, on 30cm * 30cm metal plate
3.2 efficiency, measured with 2.6m low-loss cable, on 30cm * 30cm metal plate
4.1 gain list, measured with 2.6m low loss cable, in free space
4.2 efficiency, measured with 2.6m low-loss cable, in free space
5.1 VSWR. Measured with 2.6m low-loss cable
5.2 Return flow damping. Measured with 2.6 m low-loss cable
Technical data:
Electrical specification |
||||
|
Frequency (MHz) |
694-960 |
1450-2690 |
2690-3300 |
3300-6000 |
|
Polarisation |
Dual Linear V&H |
|||
|
Peak Gain ( with 2.6m cable ) |
1.1dBi |
3.5dBi |
4.1dBi |
2.3dBi |
|
VSWR |
<3.3 |
<2.2 |
<2.2 |
<2.0 |
|
The average efficiency ( with 2.6m cable ) |
30% |
38% |
26% |
25% |
|
Nominal impedance |
50 Ohm |
|||
|
Max. Power |
15 watts |
|||
Mechanical specification |
||||
|
Mounting type |
3M double-sided adhesive tape, screws or magnetic |
| Connector | SMA connector/male straight |
| Radome | ABS, colour: white/black |
| Cable | Low-loss cable, 2.6 metres |
| Weight | Weight 126g ( with 2.6 metre cable ) |
| Dimensions | Length:100mm; Width: 70; Height:45mm |
| Material conformity | RoHS compliant |
| Operating temperature | -30°C to +70°C |
| Storage temperature | -40°C to +85°C |
