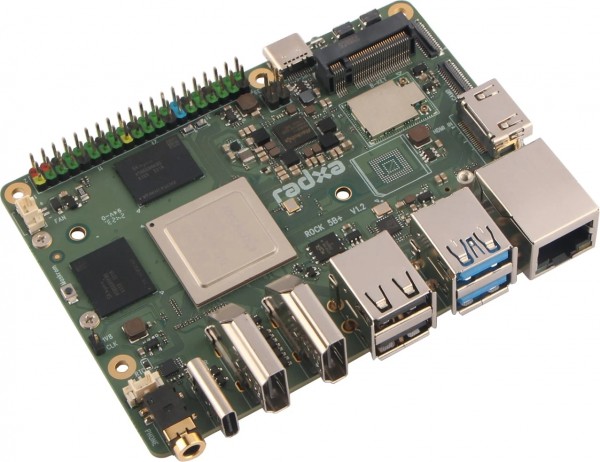

Radxa ROCK 5B+ RK3588 16GB LPDDR4 RS129-D16E0

8K Pico-ITX Single Board Computer with LPDDR5

RADXA’s recent upgrade of the successful Rock5 B+ is packed with cutting edge features, DDR5 and expansion possibilities based on the powerful Rockchip RK3588 CPU in the Pico-ITX form factor.

Radxa Rock5B+ product details

RK358864bitocta coreprocessor

Quad Cortex®-A76 @ 2.2/2.4GHz and a quad Cortex®-A55 @ 1.8GHz based on Arm®DynamIQ™ configuration

GPU

Arm® Mali™ G610MC4 GPU supporting:

– OpenGL® ES1.1, ES2.0, and ES3.2

–OpenCL® 1.1, 1.2 and 2.2

–Vulkan® 1.1 and 1.2

–Embedded high performance 2D image acceleration module

NPU

6T NPU

Memory 64bit LPDDR5 5500MT/s

LPDDR5 with 8, 16, 24 or 32GB

SPI Flash

32MB SPI flash soldered

Wifi/BT

WiFi 6E and BT5.2support via opt. WiFi module

eMMC

optional (please contact us if you need it)

MicroSDcard

uSDslot supports up to 128G uSD card

M.2 Interfaces

M.2 connector M key(bottom) for NVMe with PCIe 3.0 x4 lanes

M.2 connector E key(top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported

DisplayHDMI

Triple display support (with HDR)

2x HDMI2.1 up to 8k@60FPS

1x USB-C with DP up to 8K@30FPS

HDMI in with up to 4K@60FPS

1x MIPI DSI

Peripherals

MIPIDSI 2 lanes via FPC connector

HDMIand MIPI DSI can work at the same time, support mirror mode or extend mode.

Audio 3.5mm jack with mic

HD codec that supports up to 24-bit/96kHz audio.

Camera MIPI CSI

MIPICSI 2 lanes via FPC connector, support up to 8MP camera

USB 3.0 HOSTx3

1x USB-C

2x USB-A

Network

Wireless / Bluetooth

WiFi 6E and BT5.2

LAN

2.5GbELAN with PoE support

additional HAT is required for powering via PoE

IO 40-pinexpansionheader:

- 1 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Others

RTC battery connector for time backup

Power USB PD (new generation QC/PD protocol IC)

Support USB Type C PD 2.0, 9V/2A, 12V/2A

Power Supply Qualcomm® Quick Charge™

Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A

Size 100mm x 72mm (Pico ITX form factor)

Essentials You Need

• ROCK5 Model B+
• PD/QC compliant power adapter with USB- C port equal or larger than 15W
• Keyboard & Mouse
• Monitor with HDMI input
