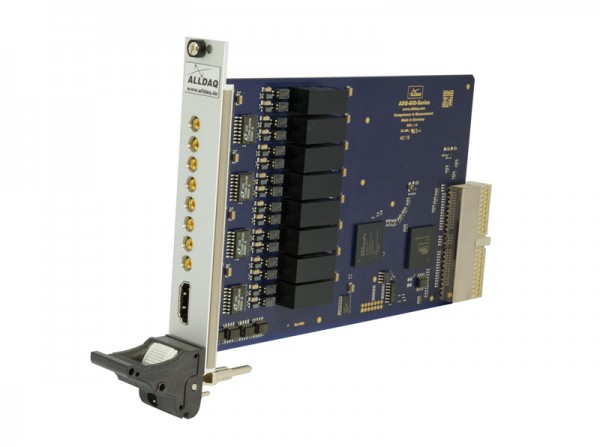

ALLDAQ ADQ-618-cPCI / ±10 V, 16 bit, 500 kS/s simult. Output

CompactPCI-D/A converter card with potential-free voltage outputs, range: ±10 V, 16 bit D/A, 500 kS/s synchronous, 8 digital I/Os

Ideal as audio generator and for analog control of actuators

• PC interface: PXI / cPCI
• 8 isolated, floating channels for voltage output
• Output voltage range: ±10 V
• Synchronous Output rate: 500 kS/s
• Individual 16 bit D/A converter for each analog output
• External trigger input for each analog output
• 8 bit digital I/O port (5 V TTL level) via HDMI connector
• Monitoring of the digital inputs for bit change with interrupt functionality
• Cable-set with MMCX plug to BNC plug or MMCX plug to MMCX plug is available
• Optional terminal block for ADQ-610 series with 8 BNC sockets or Phoenix terminals for analog outputs and Phoenix terminals for digital I/Os and trigger input
• Comprehensive software support included (see "Software"-Tab)

We cooperate with independent DAkkS-accredited testing laboratories for appropriate calibration certificates.
