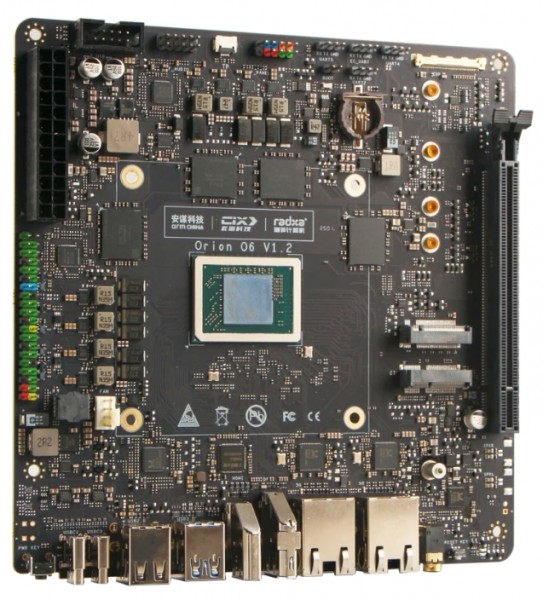

Radxa RADXA Orion O6 AI Board - 2x 5GbE Lan, 12 Cores, NPU 30Tops, Arm® Immortals G720, RS600-D8H1MOW0, 8GB RAM

RADXA’s Orion O6 is an ARM AI Motherboard with Mini ITX formfactor**

RADXA’s Orion O6 is a professional-grade Mini ITX motherboard designed for AI computing and multimedia applications. It is powered by the Cix P1 SoC and features up to 64GB LPDDR5 RAM. With comprehensive I/O options including quad display outputs, dual 5GbE ports and PCIe Gen4 expansion it delivers server-class performance in a compact form factor.

The Orion O6 is ideal for AI development workstations, edge computing nodes or e.g. high performance personal computing.

RADXA Orion O6 product details*

SoC: Cix P1 (6nm TSMC process)

4x Cortex®-A720 (Big cores)

4x Cortex®-A720 (Medium cores)

4x Cortex®-A520 (LITTLE cores)

12MB shared L3 cache

GPU

Arm® Immortalis™ G720 MC10

Hardware ray-tracing enabled

Graphic API’s:

• Vulkan® 1.3
• OpenGL® ES 3.2
• OpenCL® 3.0

NPU

30 TOPs NPU

Precision Support: INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration

Memory LPDDR5

• 128-bit memory bus
• Over 5500MT/s transfer speed
• Over 100GB/s bandwidth

LPDDR5 with 8, 16, 32 or 64GB

SPI Flash

32MB SPI flash soldered

Wifi/BT

WiFi 6E and BT5.2 support via opt. WiFi module

Storage

1x 8GB eMMC onboard for ROOBI OS

1x microSD card slot

1x M.2 connector M key for NVMe with PCIe 3.0 x2 lanes

4x SATA ports with power header

Display Outputs (up to 4 concurrent display outputs)

1x HDMI 2.0 up to 4k@60FPS (HDMI CEC not supported)

1x HDMI 2.1 up to 4k@60FPS

1x USB-C with DisplayPort Alt Mode

2x 4-lane MIPI DSI for MIPI LCD

1x eDP with Touch Panel support

Video Input

1x HDMI Input up to 4k@60FPS

2x 4-lane MIPI CSI or 4x 2-lane MIPI CSI

USB

1x USB 3.2 Gen 2 (10Gbps) Type-C port + Power Delivery

1x USB 3.2 Gen 2 (10Gbps) Type-C port + DP Alt Mode (4K@60Hz) + Power Delivery

2x USB 3.2 Gen 2 (10Gbps) Type-A

2x USB 2.0 Type-A

Network

Wireless / Bluetooth

1x M.2 E Key Connector for WiFi 6

LAN

2x 5GbE LAN ports

Other:

- 1x PWM fan connector
- 1x RTC socket (CR1220 battery)
- 1x Front Panel header for Power Button / Reset Button / Status LED

Power

1x USB C PD power supply with 20V voltage support

1x standard 24-pin ATX power supply interface

1x Dummy USB C power input with 20V voltage

Size 170mm x 170mm

Recommended operating temperature: 0 ~ 50°C

Essentials You Need

• Radxa Orion O6
• 65W (20V/3.25A or larger) via e.g. ATX PSU, USB C PD 20V DC Power supply
• Keyboard & Mouse
• Monitor with HDMI input

Availability

Radxa Orion O6 will be available until at least September 2029

Support:

Support page: https://docs.radxa.com/en/orion/o6/getting-started/introduction
