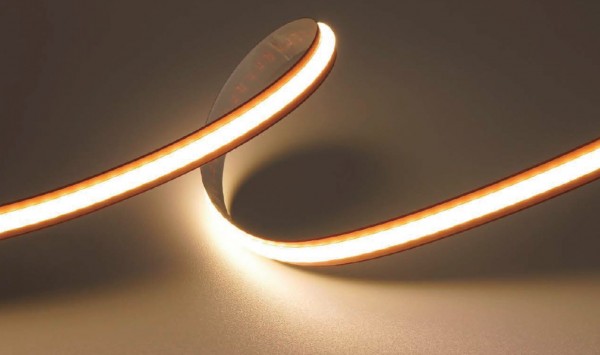

Synergy 21 LED Flex Strip COB - FREECUT SWW DC24V 50W IP20
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 251626
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-003F250254
- EAN No.: 4038816156426
- weight: 0.2kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip series COB FREECUT
For better stability and heat dissipation, a copper strip is embedded on the back.
Voltage: 24V,
Watt: 10W/m 50W total
Light colour: super warm white, 2700K, CRI>90
Brightness: 90Lm/W or 900Lm/M total: 4500LM
Beam angle: 120°
Protection class: IP20
LED number: 480LEDs/m, total: 2400LEDs
LED type: COB
Cutting dimension: freecut
LED strip dimensions: 5000*8*2.5mm
Working temperature: -25°C to +40°C
Adhesive tape: yes 3M on the back
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed. No guarantee can be given for overheated LED Strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2,08 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 8 |
| LED Strip Chip Merkmal: | freecut |
| LED Strip Chip Typ: | COB |
| LED Strip Höhe: | 2 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | freecut |
| Lichtfarbe: | super warmweiß |
| Lichtfarbe in Kelvin: | 2700 |
| Lumen: | 4500 |
| Lumen-Effizienz: | 90 |
| Produktname: | COB - Freecut |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 50 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 50.00 |
| Lumen: | 5000.00 |
| Watt: | 50.00 |
| Nennlebensdauer: | 50000.00 Std. |
| Schaltzyklen: | 35000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
