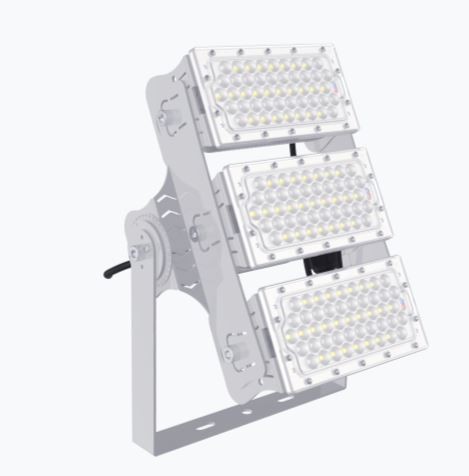

Synergy 21 LED object/stadium spotlight Hyperion 300W IP65 cw
- stock: 0
- part no.: 172380
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-NB00376
- EAN No.: 4038816172389
- weight: 6.7kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
manual
EU RoHS und REACH Erklärung
Operating voltage: AC 90-305V, 50/60Hz
Watt: 300W (Also available with 180W on request.)
LED: 144pcs Lumileds
Power supply unit: MeanWell
Beam angle: Lens 60°, light heads variably adjustable (swivelling and tilting)
Beam angles of 10°, 30°, 90° or 120° also available on request.
Lenses can also be exchanged. Interchangeable lenses with 30°, 60°, 90° and 120° available
Lumen: 48,000lm
Efficiency: 160Lm/Watt
Light colour: 5600K
CRI: Ra>70
Dimmable: no (Dimmable models such as DALI or 0-10V on request)
Housing: Aluminium
Operating temperature: -40°C to +60°C
Protection class: IP65
Dimensions: 410*340*230mm
Energy efficiency class: A++
kWh/1000h: 300
The connection of electrical components and systems may only be carried out by
only be carried out by qualified specialists!
Produktmerkmale:
| Abstrahlwinkel: | 60 |
| CRI: | >80 |
| Dimmbar: | Nein |
| Grösse: | 410*340*230 |
| LED - Gehäusefarbe: | silber |
| LED - Gehäusematerial: | Aluminium |
| Lichtfarbe: | kaltweiss |
| Lichtfarbe in Kelvin: | 6500 |
| Lumen: | 48000 |
| Schutzklasse: | IP65 |
| Volt: | 230 |
| Watt: | 300 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 300,0 |
| Lumen: | 48000 |
| Watt: | 300 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
