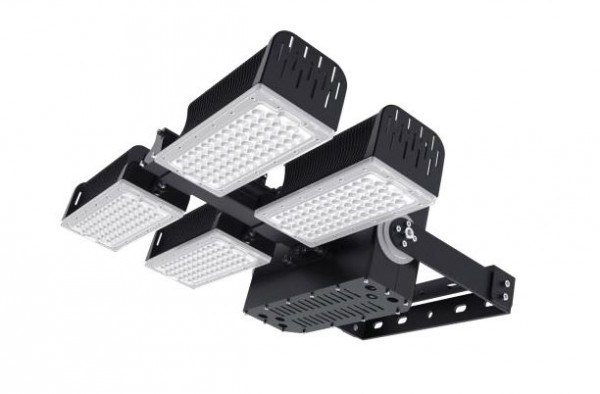

Synergy 21 LED object/stadium spotlight 480W IP66 ww (dim 0-10V)

Preview: Synergy 21 LED object/stadium spotlight 480W IP66 ww (dim 0-10V)

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

Due to the holiday "Ostermontag" your order will not be dispatched until the next working day.

Downloads

EU RoHS und REACH Erklärung

stock: 0
part no.: 162896
vendor: Synergy 21 LED
mnufacturer no.: S21-LED-NB00351
EAN No.: 4038816007629
weight: 16kg
warranty: 60 months
Do you have any questions concerning this product?

Operating voltage: AC 90-305V, 50/60Hz LED: 248 LED Philips Lumileds 165lm/Watt Power supply... more

Close menu

Product information "Synergy 21 LED object/stadium spotlight 480W IP66 ww (dim 0-10V)"

Operating voltage: AC 90-305V, 50/60Hz
LED: 248 LED Philips Lumileds 165lm/Watt
Power supply unit: MeanWell
Beam angle: Lens 90°, light heads variably adjustable (swivelling and tilting)
Beam angles with 10°, 30° or 60° also available on request.
Lumen: 79200lm
Efficiency: 165Lm/Watt
Light colour: 3000K ±150 warm white
CRI: Ra>70
dimmable: 0-10V
Housing: Aluminium
Operating temperature: -40°C to +60°C
Protection class: IP66
Dimensions: 536*165*579mm

Energy efficiency class: A++
kWh/1000h: 480

The connection of electrical components and systems may only be carried out by
only be carried out by qualified specialists!

Produktmerkmale:

Abstrahlwinkel:	90
CRI:	>80
Dimmbar:	ja, 0-10V
Grösse:	536165579
LED - Gehäusefarbe:	schwarz
LED - Gehäusematerial:	Aluminium
Lichtfarbe:	warmweiss
Lichtfarbe in Kelvin:	3000
Lumen:	79200
Schutzklasse:	IP66
Volt:	230
Watt:	480
