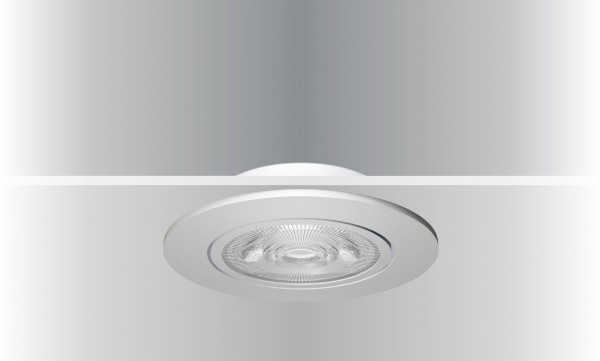

Synergy 21 LED recessed ceiling spot Helios silver, round+tilting, neutral white
- stock: 0
- part no.: 182395
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-ME024
- EAN No.: 4038816096937
- weight: 0.2kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
5 watt recessed ceiling spotlight
Lamp body and cooler made of aluminium
Stainless steel spring clip
Surface-mounted housing for concrete ceilings or similar, see accessories
Housing colour: silver/grey
Watt: 5Watt (CREE LED)
Light colour: 4000K, CRI>90
Luminous flux: 398 lm
Beam angle: 36°
Power supply: Constant current with 200mA and 22-26 Vdc (see accessories for power supply unit)
Head diameter: 80 mm
Total height: 16 mm
Hole size: 62-72mm
Dimmable: Yes via special power supply unit, see accessories
Energy efficiency class: A+
kWh/1000h: 5.5
Produktmerkmale:
| Abstrahlwinkel: | 36 |
| Ampere: | 0.20 |
| CC oder CV: | CC |
| CRI: | >90 |
| Dimmbar: | abhängig vom Netzteil |
| Grösse: | 80*80*16 |
| LED - Gehäusefarbe: | silber |
| LED - Gehäusematerial: | Aluminium |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4000 |
| Lumen: | 398 |
| Schutzklasse: | IP20 |
| Volt: | 22-26 |
| Watt: | 5 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 5,50 |
| Lumen: | 398 |
| Watt: | 5,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
