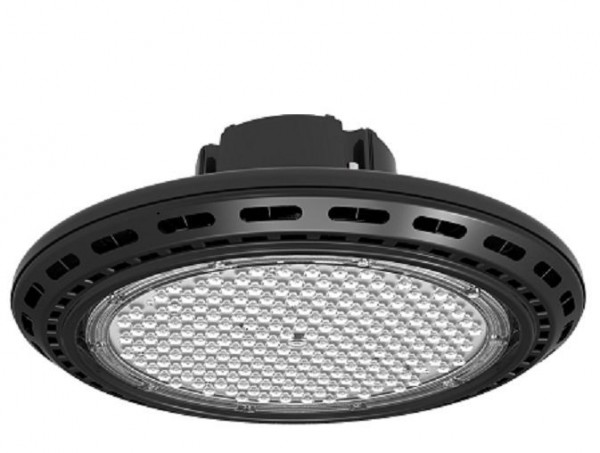

Synergy 21 LED spot pendant luminaire UFO 120W for industry/warehouses cw 90°

Preview: Synergy 21 LED spot pendant luminaire UFO 120W for industry/warehouses cw 90°

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Downloads

data sheet DE

data sheet EN

Lichtberechnungsdatei

EU RoHS und REACH Erklärung

stock: 0
part no.: 136177
vendor: Synergy 21 LED
mnufacturer no.: S21-LED-UFO0015
EAN No.: 4038816059994
weight: 4.8kg
warranty: 60 months
Do you have any questions concerning this product?

AC 90-305V/50-60Hz Dimmable: no Power: 120 Watt Luminous flux: 16000 lm Efficiency: 135lm/W... more

Close menu

Product information "Synergy 21 LED spot pendant luminaire UFO 120W for industry/warehouses cw 90°"

AC 90-305V/50-60Hz
Dimmable: no
Power: 120 Watt
Luminous flux: 16000 lm
Efficiency: 135lm/W
Beam angle: 90°
CRI Ra: > 80
Light colour: cool white
Kelvin: 6500K ± 10%
Operating temperature: -40 to +55°C
Protection class: IP65, IK10, "D" labelling according to EN 60598-2-24
Weight: 4.8kg
Diameter: 260mm
Complete height: 177.5mm

Energy efficiency class: A++
kWh/1000h: 120

5 year guarantee
IES files available on request

Produktmerkmale:

Abstrahlwinkel:	90
Betriebstemperatur:	-40 bis +55
CRI:	>80
Dimmbar:	Nein
Grösse:	260*177,5
LED - Gehäusefarbe:	schwarz
LED - Gehäusematerial:	Aluminium
Lichtfarbe:	kaltweiss
Lichtfarbe in Kelvin:	6500
Lumen:	16000
Schutzklasse:	IP65/IK10
Volt:	230
Watt:	120
