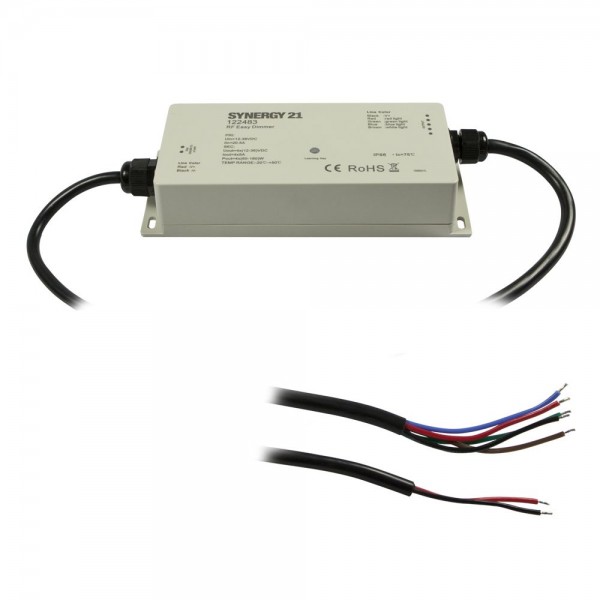

Synergy 21 LED-Steuerung EOS 05 4-Kanal-Steuerung + IP66
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 122483
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-SR000057
- EAN No.: 4038816122483
- weight: 0.1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
manual
EU RoHS und REACH Erklärung
4-channel wireless controller IP66 constant voltage
single colour, dual colour, RGB/RGB-W... more
Product information "Synergy 21 LED-Steuerung EOS 05 4-Kanal-Steuerung + IP66"
4-channel wireless controller IP66 constant voltage
single colour, dual colour, RGB/RGB-W
(Compatible with the switches and remote controls of the EOS 05 series)
Intuitive RGB colour selection freely selectable via colour wheel.
Individual colours dimmable (8 levels)
10 colour programmes (preset)
16 programme speeds selectable (4 sec. -256 sec.)
With status memory in case of power failure
Reception up to 15 metres away
Connected load: max. 4x5A
Power supply: 12-36VDC
Transmission power: >5dBm
Radio frequency: 868.3 MHz (EU approval - licence-free)
180x74x38mm
Operating temperature: -10°C - +50°C
Protection class: IP66
Produktmerkmale:
| Produktname: | LED Controller - EOS 05 |
