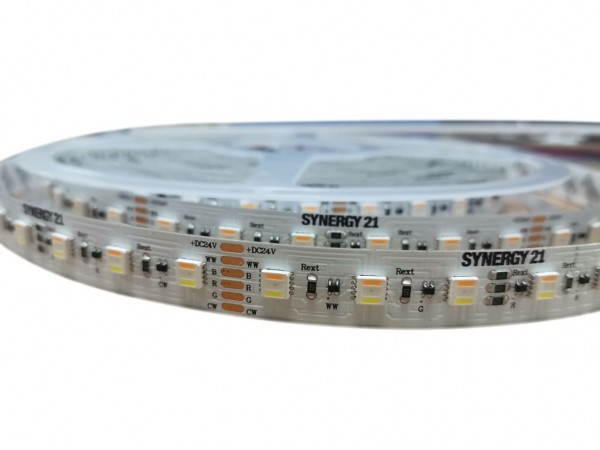

Synergy 21 LED Flex Strip 60 RGB DC24V + RGB-WW (RGB-CCT) ein Chip ULS 10m
- stock: 0
- part no.: 181651
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00213
- EAN No.: 4038816181657
- weight: 0.46kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip UL Series
ULS=Ultra Long Series
Voltage: 24V,
Watt: 200W, 20W/m
Light colour: RGB+CCT , RGB+2400K+6000K
Brightness: 2400K=370lm/m, RGB+CCT= 1265lm/m
Beam angle: 120°
Protection class: IP20
Number of LEDs: 60*5050SMD 5in1 LEDs per metre
Dimensions: 10000*15*3 mm
PCB colour: white, open cable end (360±5mm)
Working temperature: -25°C to +40°C
Can be shortened every 6 LEDs
Adhesive tape: yes 3M on the back
Energy efficiency class: A
kWh/1000h: 220
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 8,30 |
| CC oder CV: | CV |
| Dimmbar: | Ja, abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 15 |
| LED Strip Chip Anzahl: | 60 |
| LED Strip Chip Merkmal: | ULS |
| LED Strip Chip Typ: | 5050 |
| LED Strip Höhe: | 2 |
| LED Strip Länge: | 10000 |
| LED Strip kürzbar: | 100 |
| Lichtfarbe: | RGB-WW |
| Produktname: | Serie 5050 - ULS IP20 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 200 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 220 |
| Lumen: | 12650 |
| Watt: | 200 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
