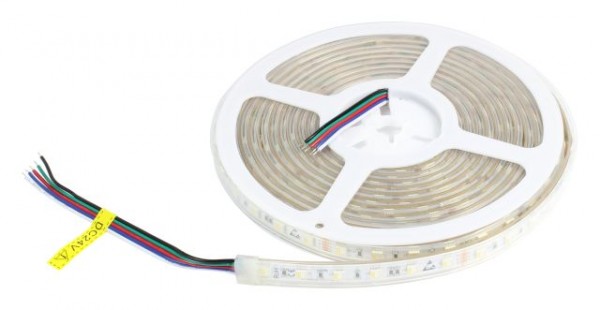

Synergy 21 LED flex strips 60 RGB DC24V + RGB-W one chip SWW IP65
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 140678
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-001008
- EAN No.: 4038816064677
- weight: 0.2kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
RGB-W Flex-Stripe, 5 metres, RGB and warm white on one chip
Warm white: 2500K ±250
IP65 with... more
Product information "Synergy 21 LED flex strips 60 RGB DC24V + RGB-W one chip SWW IP65"
RGB-W Flex-Stripe, 5 metres, RGB and warm white on one chip
Warm white: 2500K ±250
IP65 with silicone tube
DC 24V, 90W, 25Watt ww, 65Watt RGB, 3.75A max.
Brightness: ww 1500lm ± 10%
300 PCS 5050 SMD LED
common positive pole
L*W*H: 5000*12*4.5
can be shortened: all 6 LEDs can be shortened (10 cm)
Adhesive tape for mounting aid on the back
Control via Portaluce controller or
RGBW controller (radio, DMX, etc.)
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 3.80 |
| CC oder CV: | CV |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 12 |
| LED Strip Chip Anzahl: | 60 |
| LED Strip Chip Typ: | 5050 |
| LED Strip Höhe: | 4.50 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 100 |
| Lichtfarbe: | RGB-W |
| Lichtfarbe Name: | RGB-W |
| Länge: | 5 |
| Schutzklasse: | IP65 |
| Volt: | 24 |
| Watt: | 90 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 90.00 |
| Lumen: | 1500.00 |
| Watt: | 90.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
