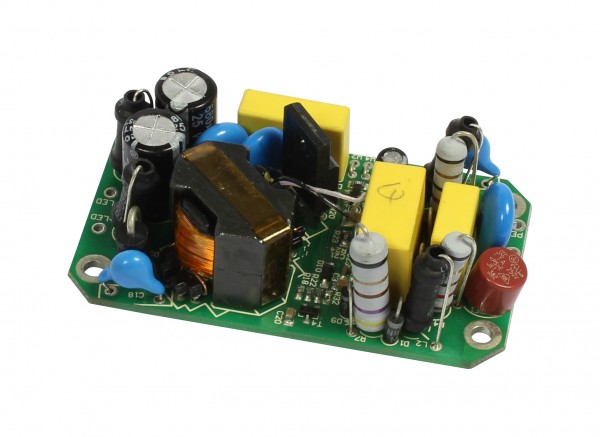

Synergy 21 Power supply unit - CC Driver ALL1082 7-21W
- stock: 0
- part no.: 99804
- vendor: Synergy 21 LED
- mnufacturer no.: ALL1082
- EAN No.: 4038816979414
- weight: 0.059kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
The ALL1082 power supply unit is a primary dimmable,
power regulated power supply
Application range: 7-21W for e.g. 10W, 20W construction spotlights
- Input voltage (normal mode): 207 to 253Vac (47 to 63Hz)
- Accepted input voltage: 180 to 270Vac (current maybe vary, refer to diagrams)
- Primary dimmable via phase-cut dimmers (leading/trailing edge dimmers)
- Inrush current: <300mA
- Output power range: 6.4 to 20W (±10%)
- Constant power behaviour (CP)
- Output voltage range: 8 to 20V (refer to diagrams)
- Output OVP shutdown: 21 to 26V
- Startup time: typical 250ms
- Ramp-up time to full light: typical 500ms
- Emergency light function: Input >30Vdc, >24Vac (at 10% nominal power)
- Temperature range: -25 to 65°C
- Overall efficiency: 78 to 86%
- High power factor: 82 to 98% (refer to diagrams)
- Temperature derating: Power reducing at 60°C PCB temperature
- Thermal shutdown: at 80°C PCB temperature to <20% of nominal power
- Outputs connectable in series/parallel to reach higher power/voltage
