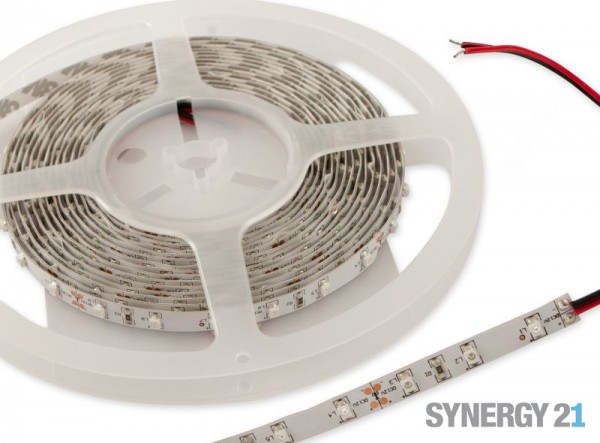

Synergy 21 LED Flex Strip 60 green DC12V 24W IP20
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 103986
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00038
- EAN No.: 4038816015648
- weight: 0.09kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip green DC12V 24W
Voltage: 12V
Watt: 24W
Light colour: green
Beam... more
Product information "Synergy 21 LED Flex Strip 60 green DC12V 24W IP20"
Synergy 21 LED Flex Strip green DC12V 24W
Voltage: 12V
Watt: 24W
Light colour: green
Beam angle: 120°
Number of LEDs: 300
Dimensions: 5000*8*3 mm
Weight: 0,090 kg
Can be shortened every 3 LEDs
Adhesive tape for mounting aid on the back
Strip can be shortened at marking marks with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split the strip when no current is present.
Please note that LED strips must also be cooled.
Ensure that the LED strip does not exceed the working temperature of 40°C, otherwise the service life cannot be guaranteed.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2 |
| CC oder CV: | CV |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 8 |
| LED Strip Chip Anzahl: | 60 |
| LED Strip Chip Typ: | 2835 |
| LED Strip Höhe: | 3 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfarbe: | grün |
| Lichtfarbe Name: | grün |
| Länge: | 5 |
| Schutzklasse: | IP20 |
| Volt: | 12 |
| Watt: | 24 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | .00 |
| Lumen: | 465.00 |
| Watt: | 24.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
