Synergy 21 LED-Flex-Streifen 120 NW DC24V 96W IP20 ULS 10m
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 140919
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00149
- EAN No.: 4038816065940
- weight: 0.4kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung

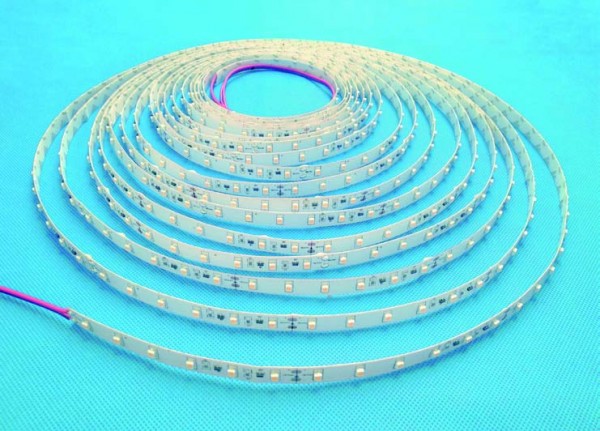

Synergy 21 LED Flex Strip UL Series
ULS=Ultra Long Series
Voltage: 24V, max4A
Watt: 96W±10%
Light colour: neutral white, 4250K±250k
Brightness: 8100lm
Beam angle: 120°
Protection class: IP20
Number of LEDs: 1200*3528SMD
Dimensions: 10000*10*3 mm
PCB colour: white, open cable end (360±5mm)
Operating temperature: -25°C to +40°C
Weight: 0.500kg
Can be shortened every 6 LED 10cm
Adhesive tape: yes 3M on the back
Energy efficiency class: A+
kWh/1000h: 105.60
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 4 |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 10 |
| LED Strip Höhe: | 3 |
| LED Strip Länge: | 10000 |
| LED Strip kürzbar: | 100 |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4250 |
| Lumen: | 8100 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 96 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 105,6 |
| Lumen: | 8100 |
| Watt: | 96,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
