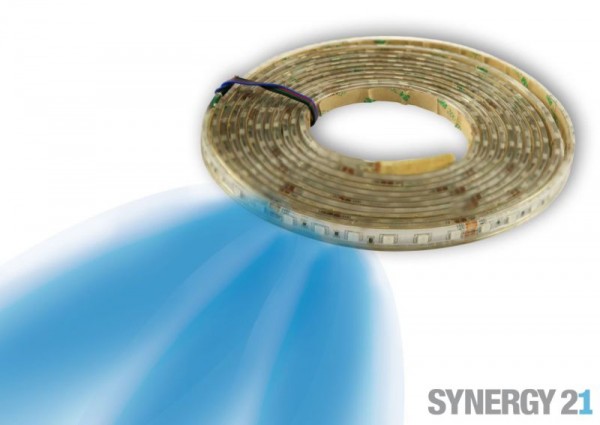

Synergy 21 LED flex strip 70 blue DC24V 72W IP68
product pictures similar, may differ from the product description!
Due to the holiday "1. Weihnachtstag" your order will not be dispatched until the next working day.
-
Last Stock Article
- stock: 0
- part no.: 159035
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-C000931
- EAN No.: 4038816096395
- weight: 0.1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
There is an alternative article for this product!
LED Flex Strip blue IP68,
DC24V, 72W,
350Leds, 120°, 5050SMD, 1500LM
Length: 5000*14*4.2mm... more
Product information "Synergy 21 LED flex strip 70 blue DC24V 72W IP68"
LED Flex Strip blue IP68,
DC24V, 72W,
350Leds, 120°, 5050SMD, 1500LM
Length: 5000*14*4.2mm
Can be shortened every 6 LEDs
Strip can be shortened at marking marks with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split the strip when no current is present.
Energy efficiency class: B
kWh/1000h: 72
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 3 |
| CC oder CV: | CV |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 14 |
| LED Strip Chip Anzahl: | 70 |
| LED Strip Chip Typ: | 5050 |
| LED Strip Höhe: | 4.20 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 100 |
| Lichtfabe in nm: | 465 |
| Lichtfarbe: | blau |
| Lichtfarbe 3: | 465 |
| Lichtfarbe Name: | blau |
| Lichtfarbe in nm: | 465 |
| Lumen: | 1500 |
| Schutzklasse: | IP68 |
| Volt: | 24 |
| Watt: | 72 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 72.00 |
| Lumen: | 1500.00 |
| Watt: | 72.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
