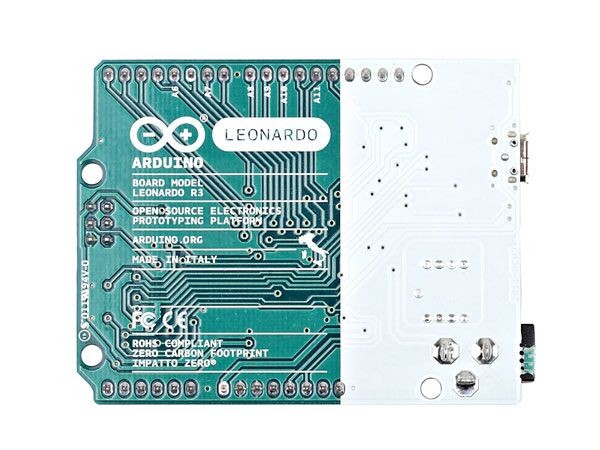

Preview: Arduino® Leonardo (with Headers)

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

EU RoHS und REACH Erklärung

stock: 0
part no.: 126459
vendor: ARDUINO
mnufacturer no.: A000057
EAN No.: 8058333491141
weight: 0.04kg
warranty: 12 months
Do you have any questions concerning this product?

Leonardo Similar to an Arduino UNO, can be recognized by computer as a mouse or keyboard.... more

Close menu

Product information "Arduino® Leonardo (with Headers)"

Leonardo

Similar to an Arduino UNO, can be recognized by computer as a mouse or keyboard.

Produktübersicht

The Arduino Leonardo is a microcontroller board based on the ATmega32u4 (datasheet). It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board; these are detailed on the getting started page.

Technische Spezifikationen

Microcontroller	ATmega32u4
Operating Voltage	5V
Input Voltage (Recommended)	7-12V
Input Voltage (limits)	6-20V
Digital I/O Pins	20
PWM Channels	7
Analog Input Channels	12
DC Current per I/O Pin	40 mA
DC Current for 3.3V Pin	50 mA
Flash Memory	32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM	2.5 KB (ATmega32u4)
EEPROM	1 KB (ATmega32u4)
Clock Speed	16 MHz
Lenght	68.6 mm
Width	53.3 mm
Weight	20 g
