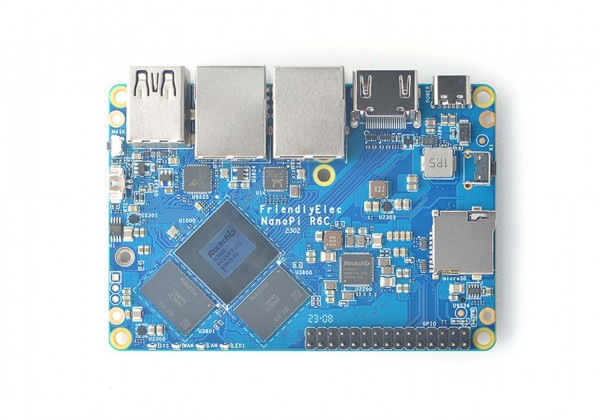

FriendlyELEC NanoPI R6C Dual-2.5G ETH 8G RAM / 32G emmC Combo with Case
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 222780
- vendor: ALLNET
- mnufacturer no.: R6C-8-32
- EAN No.: 4038816130471
- weight: 0.1kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
CPU
Model: Rockchip RK3588S
Number of Cores: Quad-core ARM... more
Product information "FriendlyELEC NanoPI R6C Dual-2.5G ETH 8G RAM / 32G emmC Combo with Case"
| CPU | Model: Rockchip RK3588S Number of Cores: Quad-core ARM Cortex-A76 & Quad-core Cortex-A55 CPU Frequency: 4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz |
| GPU | Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 |
| VPU | 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder 8K@30fps H.264 and H.265 encoder |
| NPU | 6TOPs, supports INT4/INT8/INT16/FP16 |
| Memory | RAM: 64-bit 4GB/8GB LPDDR4X at 2133MHz |
| Storage | MicroSD Slot: MicroSD x1, support up to SDR104 mode Flash: 32GB eMMC, at HS400 mode PCIe: M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc Onboard M3 PCB nut for mounting M.2 2280 module |
| Connectivity | Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip PCIe 2.5G Ethernet Ethernet x1, RTL8125BG chip |
| Video Output | HDMI: compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation support up to 7680x4320@60Hz Support RGB/YUV(up to 10bit) format |
| USB | USB 3.0 Host x1: USB Type A USB 2.0 Host x1: USB Type A USB-C x1: Power input(5V/9V/12V/20V), support PD |
| Pin-header | GPIO: 30-pin 2.54mm header connector up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs Debug: Debug UART x1 via 3 Pin 2.54mm header, or on-board USB-C to UART |
| LED | SYS LED(Red) x1 WAN LED(Green) x1 LAN LED(Green) x1 LED1(Green) x1 |
| Button | MASK Button x1 for eMMC update User Button x1 |
| Others | RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS Working Temperature: 0? to 70? |
| Power | USB-C, support PD, 5V/9V/12V/20V input |
| OS Support | FriendlyWrt 21.02 FriendlyWrt 22.03 Android 12 Tablet Android 12 TV FriendlyCore Lite 20.04 Debian 10 Desktop Debian 11 Desktop Ubuntu 22.04 Desktop |
| Kernel version | Linux-5.10-LTS U-boot-2017.09 |
| PCB | 8 Layer |
| Weight | 53.1g(without Case) / 260g(with Case) |
| Dimension | 62x90x1.6mm (without Case) / 68x94.5x30mm (with Case) |
