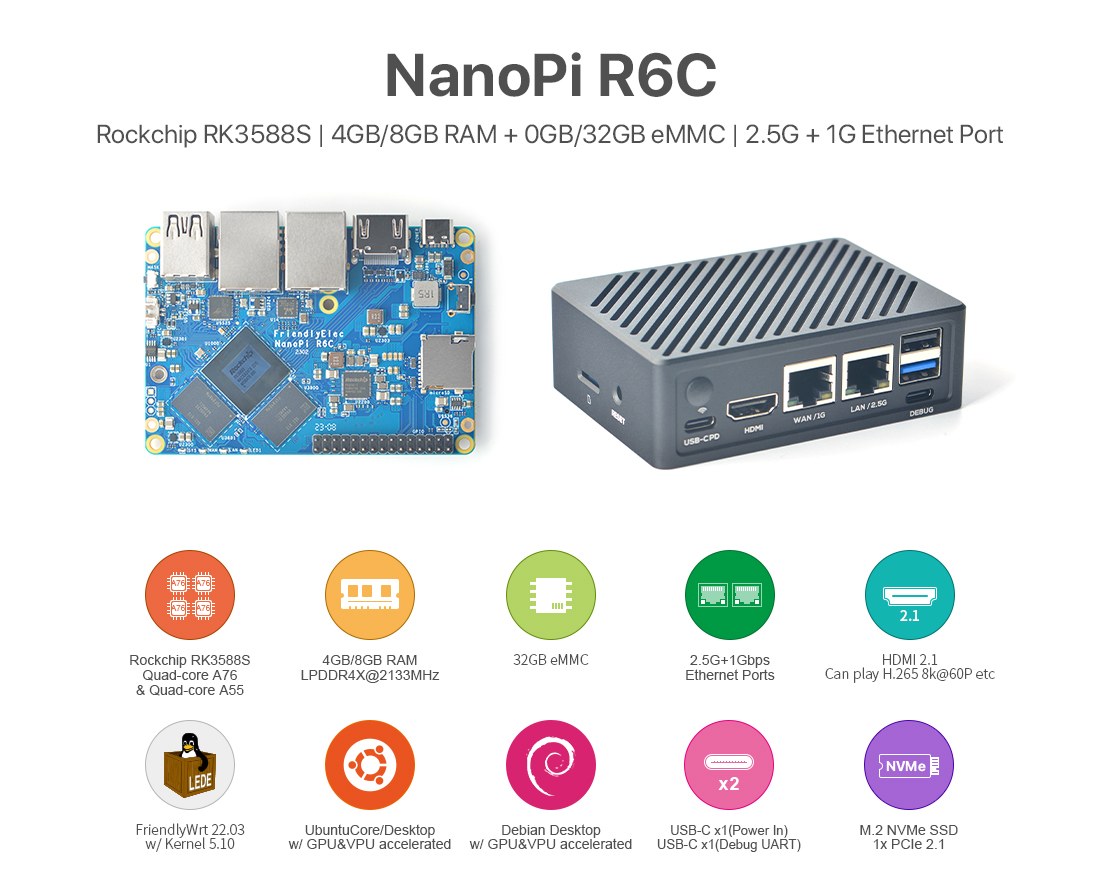

FriendlyELEC NanoPI R6C Dual-2.5G ETH 8G RAM / 32G emmC Combo with Case

product pictures similar, may differ from the product description!

This product is not available at the moment. Delivery time upon request.

Due to the holiday "2. Weihnachtstag" your order will not be dispatched until the next working day.

CPU Model: Rockchip RK3588S Number of Cores: Quad-core ARM... more

Product information "FriendlyELEC NanoPI R6C Dual-2.5G ETH 8G RAM / 32G emmC Combo with Case"

CPU	Model: Rockchip RK3588S Number of Cores: Quad-core ARM Cortex-A76 & Quad-core Cortex-A55 CPU Frequency: 4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz
GPU	Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU	8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder 8K@30fps H.264 and H.265 encoder
NPU	6TOPs, supports INT4/INT8/INT16/FP16
Memory	RAM: 64-bit 4GB/8GB LPDDR4X at 2133MHz
Storage	MicroSD Slot: MicroSD x1, support up to SDR104 mode Flash: 32GB eMMC, at HS400 mode PCIe: M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc Onboard M3 PCB nut for mounting M.2 2280 module
Connectivity	Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip PCIe 2.5G Ethernet Ethernet x1, RTL8125BG chip
Video Output	HDMI: compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation support up to 7680x4320@60Hz Support RGB/YUV(up to 10bit) format
USB	USB 3.0 Host x1: USB Type A USB 2.0 Host x1: USB Type A USB-C x1: Power input(5V/9V/12V/20V), support PD
Pin-header	GPIO: 30-pin 2.54mm header connector up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs Debug: Debug UART x1 via 3 Pin 2.54mm header, or on-board USB-C to UART
LED	SYS LED(Red) x1 WAN LED(Green) x1 LAN LED(Green) x1 LED1(Green) x1
Button	MASK Button x1 for eMMC update User Button x1
Others	RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS Working Temperature: 0? to 70?
Power	USB-C, support PD, 5V/9V/12V/20V input

OS Support	FriendlyWrt 21.02 FriendlyWrt 22.03 Android 12 Tablet Android 12 TV FriendlyCore Lite 20.04 Debian 10 Desktop Debian 11 Desktop Ubuntu 22.04 Desktop
Kernel version	Linux-5.10-LTS U-boot-2017.09

PCB	8 Layer
Weight	53.1g(without Case) / 260g(with Case)
Dimension	62x90x1.6mm (without Case) / 68x94.5x30mm (with Case)
