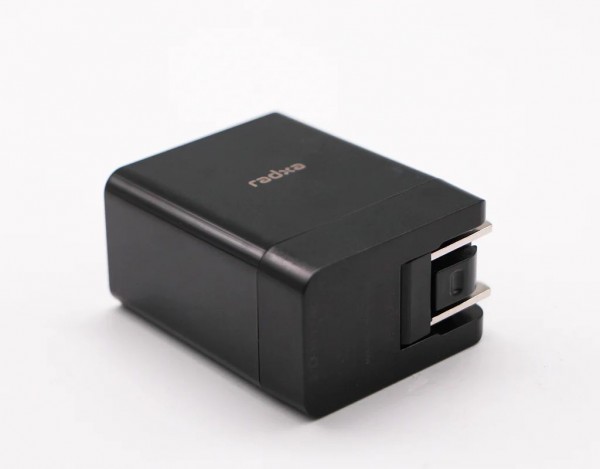

Radxa zbh. Power supply AP002 / Radxa Power PD 30W
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 222128
- vendor: ALLNET
- mnufacturer no.: AP002-EU
- weight: 1kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Introduction
The Radxa Power PD 30W is an adapter designed specifically for Radxa’s SBC... more
Product information "Radxa zbh. Power supply AP002 / Radxa Power PD 30W"
Introduction
The Radxa Power PD 30W is an adapter designed specifically for Radxa’s SBC products. It can deliver up to 5A at 5V to meet the power requirements of Radxa SBCs even when multiple peripherals are connected. For SBCs that support PD/QC protocol, it can deliver a total of 30W of power at 12V/2.5A. It is compatiable for all Radxa SBCs.
Features
- INPUT: AC100-240V50/60Hz1A
- OUTPUT: 5V/5A, 9V/2A, 12/2.5A
- Protection Function
- Over Voltage Protection
- Short Circuit Protection
- Over Current Protection
- Environment Requirement
- Temperature:
- Operation Ambient: 0? - +40?
- Storage Ambient: -25? - +55?
- Humidity:
- Operating: 25% - 90% relative humidity (Non- condensing)
- Storage: 10% - 90% relative humidity (Non- condensing)
- Altitude:
- Operating: 2000 meters
- Storage: 2000 meters
- Temperature:
