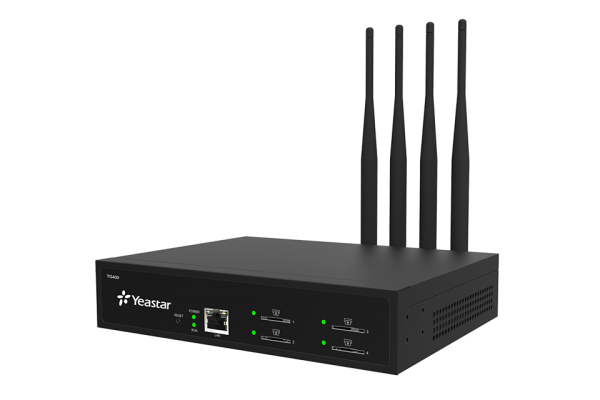

Yeastar LTE/4G-Gateway TG400L 4x Kanal

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Due to the holiday "Tag der deutschen Einheit" your order will not be dispatched until the next working day.

Downloads

declaration of conformity

data sheet DE

data sheet EN

EU RoHS und REACH Erklärung

stock: 0
part no.: 154787
vendor: Yeastar
mnufacturer no.: TG400L
EAN No.: 6926150033283
weight: 1.8kg
warranty: 24 months
Do you have any questions concerning this product?

Highlights Yeastar TG series connects GSM/3G/4G-networks directly to VoIP networks and... more

Close menu

Product information "Yeastar LTE/4G-Gateway TG400L 4x Kanal"

Highlights

Yeastar TG series connects GSM/3G/4G-networks directly to VoIP networks and enables bi-directional communication: GSM/3G/4G with VoIP and VoIP with GSM/3G/4G. The TG series is the best available solution to interconnect IP-based PBXs and provides a softswitch connection to a GSM/3G4G network. In addition, it is the best fallback solution when the fixed line fails.

Connect PBX systems to GSM or 3G WCDMA or 4G LTE networks
Send and receive SMS messages via web interface, supports bulk SMS
Save significant phone costs with mobile-to-mobile calls and SIP trunks
In the web-based management, everything can be set up effortlessly
Cost-effective backup when landline fails
Easy to integrate: high compatibility with established IPPBX and softswitch

Technical Specification

Models*	TG100	TG200	TG400	TG800	TG1600
Number of Ports	1	2	4	8	16
GSM Frequency**	850/900/1800/1900 MHz
WCDMA Frequency**	850/1900 MHz, 850/2100 MHz, 900/2100 MHz
4G Data	–
4G LTE Band**	Don’t support 4G LTE	Depending on the module type. Check the supported band and operators.			Don’t support 4G LTE
Protocol	SIP, IAX2
Antenna Splitter (4 in 1)	–		Support
Transport	UDP, TCP, TLS, SRTP
Voice Codec	G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
DTMF Mode	RFC2833, SIP Info, In-band
Echo Cancellation	ITU-T G.168 LEC
Calling Type	Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP)
Network Protocol	FTP, TFTP, HTTP, SSH
LAN	1 10/100 Mbps Ethernet Interface			2 10/100 Mbps Ethernet Interfaces
NAT Traversal	Static NAT, STUN
Network	DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN
Operation Range	0°C to 40°C, 32°F to 104°F
Power Supply	DC 12V, 1A	AC 100-240V
Storage Range	-20°C to 65°C, -4°F to 149°F
Dimensions (L × W × H) (mm)	110 x 70 x 24	213 x 160 x 44		340 x 210 x 44	440 x 250 x 44
Humidity	10-90% non-condensing

*You could order either GSM or 3G or 4G channel. TG100 and TG1600 do not support 4G LTE.
**Click here to check the frequency/band and cellular operators supported by TG GSM VoIP Gateway.
