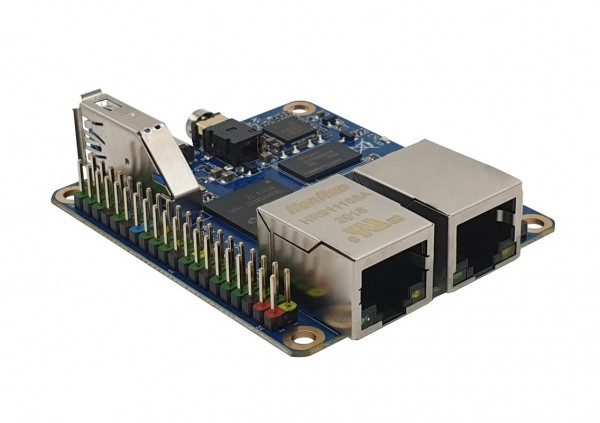

Rock Pi E D4W1P Dual Ethernet Board RK3328 512MB RAM 802.11

ROCK Pi E is the latest member of the Rockchip-based Rock Pi family. Powered by a Rockchip RK3328 64bit quad-core CPU, the board offers a lot of outstanding features.

With up to 1 GB DDR3 RAM, uSD and eMMC interface, USB3.0, dual Ethernet and wireless connectivity at a size of 2.5 x 2.2 inches (56 x 65 mm), the Rock Pi E is perfect for IoT and networking applications. The flexibility of the SBC can be extended with optionally available eMMC 5.1 modules or a PoE Hat for network power supply. Feature HATs will further increase the functionality and possible applications of this SBC. No heat management required.

3D housing for self-printing at: https://www.thingiverse.com/thing:4943843

Technical details:

Processor:

Rockchip RK3328 SOC quad-core Cortex A53 up to 1.5GHz

Neon and FPU coprocessor with shared L2 cache

Mali-450MP4 GPU

RAM

256MB/512MB/1GB

Network variants:

1x Gigabit ETH

1x 100Mbit ETH

WIFI a/b/g/n + Bluetooth 4.2

WIFI a/c + Bluetooth 4.2

WIFI + Bluetooth 4.2 + PoE

Interfaces:

USB A 3.0 port

Audio connection

USB-C port for the power supply (OTG)

Storage

TF card interface (up to 128 GB)

eMMC 5.1 interface
