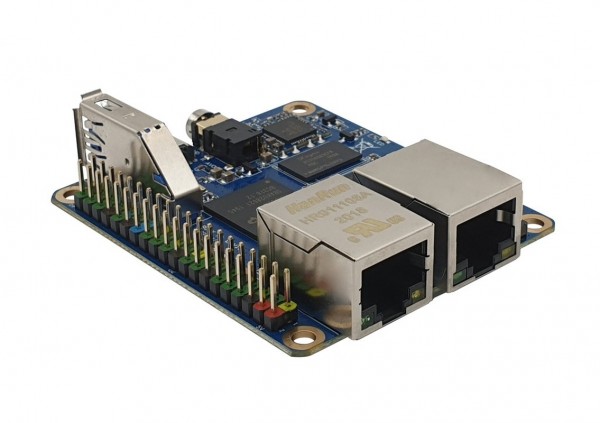

Rock Pi E D8P Dual Ethernet Board RK3328 1GB RAM oh. Wifi/BT
- stock: 0
- part no.: 188888
- vendor: ALLNET
- mnufacturer no.: RS309-D8P
- EAN No.: 4038816098702
- weight: 0.035kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity manual EU RoHS und REACH ErklärungROCK Pi E is the latest member of the Rockchip-based Rock Pi family. Powered by a Rockchip RK3328 64bit quad-core CPU, the board offers a lot of outstanding features.
With up to 1 GB DDR3 RAM, uSD and eMMC interface, USB3.0, dual Ethernet and wireless connectivity at a size of 2.5 x 2.2 inches (56 x 65 mm), the Rock Pi E is perfect for IoT and networking applications. The flexibility of the SBC can be extended with optionally available eMMC 5.1 modules or a PoE Hat for network power supply. Feature HATs will further increase the functionality and possible applications of this SBC. No heat management required.
3D housing for self-printing at: https://www.thingiverse.com/thing:4943843
Model | SoC | Ram | Storage | WiFi | Bluetooth | Ethernet | PoE | USB | uSD | Audio | GPIO |
---|---|---|---|---|---|---|---|---|---|---|---|
D4 | RK3328 | 512MB | eMMC socket [1] | N/A | N/A | 1000M+100M | N/A | USB3.0 x1, USB 2.0 OTG x1 | Up to 128GB | 3.5mm Jack AVOUT | 40P GPIO Header |
D4P | Support PoE Hat | ||||||||||
D4W | 802.11 a/b/g/n, 2.4G | BT 4.2 | N/A | ||||||||
D4WP | Support PoE Hat | ||||||||||
D8 | 1GB | N/A | |||||||||
D8P | Support PoE Hat | ||||||||||
D8W | N/A | ||||||||||
D8WP |
802.11ac, 2.4G&5G | BT 4.2 | Support PoE Hat | ||||||||
Technical details:
Processor:
Rockchip RK3328 SOC quad-core Cortex A53 up to 1.5GHz
Neon and FPU coprocessor with shared L2 cache
Mali-450MP4 GPU
RAM
256MB/512MB/1GB
Network variants:
1x Gigabit ETH
1x 100Mbit ETH
WIFI a/b/g/n + Bluetooth 4.2
WIFI a/c + Bluetooth 4.2
WIFI + Bluetooth 4.2 + PoE
Interfaces:
USB A 3.0 port
Audio connection
USB-C port for the power supply (OTG)
Storage
TF card interface (up to 128 GB)
eMMC 5.1 interface
