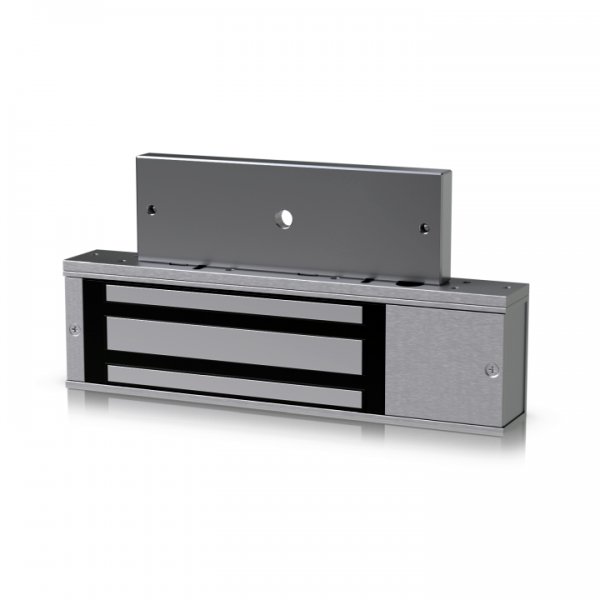

Ubiquiti Magnetic Lock • UniFi • UA-Lock-Magnetic-540kg
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 231260
- vendor: Ubiquiti
- mnufacturer no.: UA-Lock-Magnetic-540kg
- EAN No.: 810010076519
- weight: 3kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Fail-safe magnetic lock for doors that open inwards and outwards, which is connected to a UniFi... more
Product information "Ubiquiti Magnetic Lock • UniFi • UA-Lock-Magnetic-540kg"
Fail-safe magnetic lock for doors that open inwards and outwards, which is connected to a UniFi Access Hub.
Hält up to 270 kg or 540 kg (600-1,200 lb)
Can be installed on a wide range of door types*
*— Access lock magnetic 270 kg: All types, including full glass
— Access lock magnetic 540 kg: All types, excluding full glass
Compatibilityät :
,
,
,
Technical specifications
| Mechanical | |
|---|---|
| Maße | UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm (9.8 x 1.7 x 1 inch) Mounting plate: 250 x 25 x 5 mm (9.8 x 1 x 0.2 inches) Anchor: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4 inches) UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6 inches) Mounting plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2 inches) Anchor: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6 inches) |
| Weight | UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Mounting plate: 70 g (0.15 lb) Anchor: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Mounting plate: 145 g (0.3 lb) Anchor: 1.4 kg (3.1 lb) |
| Features | Gerät/Mountings: Aluminium Fitting: steel |
| Hardware | |
| Voltage | 12 V DC |
| Current energy | UA-Lock-Magnetic-270kg: 800mA ±10% UA-Lock-Magnetic-540kg: 500mA ±10% |
| Cable connection | Connect the following terminals to the UA hub: Lock 12 V/NC (connect to Power Lock Relay NC on the UA hub) Lock 12 V/COM (connect with Powered Lock Relay COM on the UA hub) DPS/+ (DPS+ on the UA hub) DPS/- (DPS on the UA hub) |
| Lock type | Fail-safe lock Single door |
| Holding power | UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb) |
| LED | Greün: unlocked Red: locked |
| Suitability | UA-Lock-Magnetic-270kg: wood/metal/glass UA-Lock-Magnetic-540kg: wood/metal |
| Mounting accessories | UA-Lock-Magnetic-270kg L-bracket: door thickness < 42 mm (< 1.7 inches), outward opening door Z-angle: is used with L-angle for doors opening inwards U-angle: is used with glass door UA-Lock-Magnetic-540kg L-bracket: door thickness < 42 mm (< 1.7 inch), door opening outwards Z-angle: is used with L-angle for doors opening inwards |
| Operating ambient temperature | -10 to 50 °C (14 to 122 °F) |
| Humidity during operation | 5 to 90 % non-condensing |
| Certifications | FCC, IC, CE |
