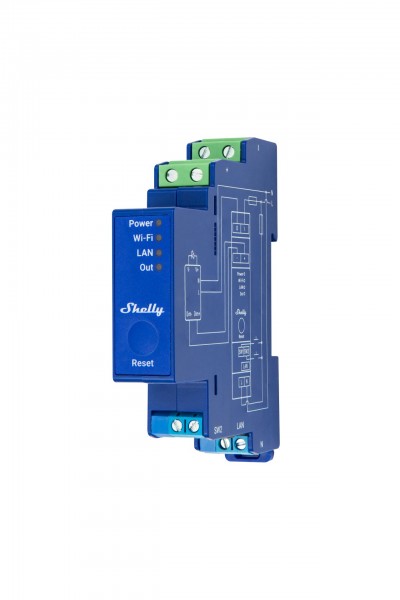

Shelly · Hutschiene · "Pro Dimmer 0/1-10V PM" · Messfunktion · WLAN · LAN · BT

Shelly · Hutschiene · "Pro Dimmer 0/1-10V PM" · Messfunktion · WLAN · LAN · BT
Shelly · Hutschiene · "Pro Dimmer 0/1-10V PM" · Messfunktion · WLAN · LAN · BT
Shelly · Hutschiene · "Pro Dimmer 0/1-10V PM" · Messfunktion · WLAN · LAN · BT
Shelly · Hutschiene · "Pro Dimmer 0/1-10V PM" · Messfunktion · WLAN · LAN · BT
product pictures similar, may differ from the product description!

net price plus shipping costs

Expected to be available from 28 October 2024

Smart DIN-mountable dimming control unit with power measurement for 0/1-10 V devices The... more
Product information "Shelly · Hutschiene · "Pro Dimmer 0/1-10V PM" · Messfunktion · WLAN · LAN · BT"

Smart DIN-mountable dimming control unit with power measurement for 0/1-10 V devices

The Shelly Dimmer 0/1-10V PM Gen3 can control 0/1-10V dimming drivers and offers precise dimming with power measurement.

  1. DIN rail mounting
  2. WLAN and Bluetooth-controlled
  3. Various driver integration: Supports 0-10 V and 1-10 V driver types (lights, motors, valves, etc.).
  4. Power measurement: Precise monitoring of energy consumption. Information on voltage (V), current (A) and consumption (W) is displayed.
  5. Ethernet connection
  6. WLAN repeater & BLE gateway
  7. Scriptifähigkeiten: Create automation scenarios through scripts
  8. .
  9. Single/double button dimming mode: Use with physical switches
  10. Night mode: Set a specific brightness at night
  11. Automatic on/off timers: Configure automatic on/off timers.
  12. Safety: overcurrent/voltage/power protection
  13. Virtual components: Special components that are not originally present in the device and are created dynamically by the user
  14. .
  15. No hub required! Easy control via the Shelly Smart Control app, most platforms and protocols and voice assistants. Use it with Alexa, Home Assistant or your favourite automation platform
  16. Supports the KNXnet / IP communication

Why you should choose the shelly pro dimmer 0-1/10V PM

Professional dimmer

The Shelly Pro Dimmer 0/1-10V PM is a DIN rail-mountable smart dimmer with power measurement. Use it to control, dim and measure the consumption of a variety of halogen lamps, dimmable LEDs and ferromagnetic transformers between 0-10V or 1-10V. Various actions, scenarios and schedules can be set up to adapt your lighting environment to your private or business life.

Functions

LAN, WLAN and Bluetooth connectivity

LAN connection for high security and reliability. Simultaneous use of WLAN and LAN as a backup if required.

Adjustment of the light intensity

Use the dimming function to adjust the brightness of your lamps to your liking.

Power monitoring

The Shelly Pro Dimmer 0/1-10V PM offers precise monitoring of energy consumption.

Flexible input control

Use it with your existing switches, regardless of whether they are single or double buttons.

Smart schedules

Set customised schedules based on your daily routine or follow the sunrise and sunset and control your lighting accordingly.

Smart scenes

Combine the Pro Dimmer 0/1-10V PM with your other Shelly devices and set customised scenes.

Features of the Pro series

HTTP/HTTPS webhooks for a fast connection

The Shelly Pro range is enhanced with HTTP/HTTPs webhooks and can easily connect to, notify or control other compatible third-party devices or automation systems.

Smart actions that follow the sunrise and sunset

The Shelly Pro series can switch the power on and off according to sunrise and sunset, which enables dynamic control of electrical equipment depending on the time of year.

Automation with weekly planning

With the Shelly Pro series, you can set up to 20 actions based on your daily or weekly schedule without the need for an external hub or server.

Script creation for customised automation

The Shelly Pro series fully supports mjS scripting, so you can create your own features and functions.

Advanced integration

KNX support

 Documentation for the support of KNXnet/IP communication

Technical data

Size (H x W x D): 94 x 19 x 69 ±0.5 mm / 3.70 x 0.75 x 2.71 ±0.02 inch
Weight: 70 g
Screw terminals max. torque: 0.4 Nm / 3.54 lbin
Cross-section of the conductor: 0.5 to 2.5 mm² / 20 to 14 AWG (green terminals)
0.5 to 1.5 mm² / 20 to 16 AWG (blue terminals)
Insulation length of the conductor: 6 to 7 mm / 0.24 to 0.28 inch (green terminals)
5 to 6 mm / 0.20 to 0.24 inch (blue clamps)
Mounting: DIN
Fitting material: Plastic
Colour of the housing: Pantone 2736C (blue)
Print colour: White;
Colour of the connection terminals: Green, blue
Ambient temperature: -20°C to 40°C
Humidity: 30% to 70% relative humidity
Max. Höhe ü.M.: 2000 m
Power supply: 110-240 V
Internal consumption of the device: < 3 W
Neutral conductor is required: No
0-10V/1-10V Type of voltage regulation Current voltage source
External protection: 16 A, tripping characteristic B or C, 6 kA breaking capacity, energy limitation class 3
Max. Switching voltage: 240 V
Max. Switching current: 16 A
Voltmeter (AC): Yes
Amperemeter (AC): Yes
Power and energy meter:
  Active and apparent power
  Active and apparent energy
  Power factor
  Fundamental active and fundamental reactive energy
Storage of measurement data: No
Internal temperature sensor: Yes
WLAN
Protocol: 802.11 b/g/n
Frequency band: 2412-2472 MHz
Max. RF power: < 20 dBm
Range: Up to 30 m outdoors and up to 50 m indoors (depending on local conditions)
Bluetooth
Log: 4.2
RF band: 2402-2480 MHz
Max. HF power: < 4 dBm
Range: Up to 30 m outdoors, up to 10 m indoors (depending on local conditions)
CPU: ESP32-D0WDQ6
Clock frequency: 40 Mhz
Flash: 8 MB
Time schedule: 20
WebHooks (URL actions): 20 with five URLs per hook
Scripting: Yes
MQTT: Yes
Extended schedules: Yes
KVS (key value database): Yes
