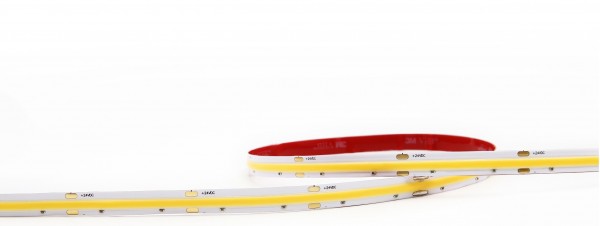

Synergy 21 LED Flex Strip COB - SWW DC24V 150W IP67 CC 15m ULS

Synergy 21 LED Flex Strip COB - SWW DC24V 150W IP67 CC 15m ULS
Synergy 21 LED Flex Strip COB - SWW DC24V 150W IP67 CC 15m ULS

Preview: Synergy 21 LED Flex Strip COB - SWW DC24V 150W IP67 CC 15m ULS Preview: Synergy 21 LED Flex Strip COB - SWW DC24V 150W IP67 CC 15m ULS
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Description Accessories 10
Description
Synergy 21 LED Flex Strip Series COB high power A copper strip is embedded on the reverse side... more
Close menu
Product information "Synergy 21 LED Flex Strip COB - SWW DC24V 150W IP67 CC 15m ULS"

Synergy 21 LED Flex Strip Series COB high power
A copper strip is embedded on the reverse side to improve stability and heat dissipation.


Voltage: 24V,
Wattage: 10W/m, 150W total
Light colour: super warm white, 2700K, CRI > 90
Luminous efficacy: 92 lm/W or 920 lm/m, total: 13,800 lm

Beam angle: 120°
Protection rating: IP67
Number of LEDs: 480 LEDs/m, total: 6,300 LEDs
LED type: COB
Cutting length: 50 mm

LED strip dimensions: 15,000 × 12 × 6 mm

Width/height of connector: 14 × 8 mm



Operating temperature: -25°C to +45°C
Adhesive tape: yes, 3M on the reverse side


Please ensure that the LED strip does not exceed an operating temperature of 40°C, as otherwise its service life cannot be guaranteed.
No warranty can be provided for overheated LED strips.

Produktmerkmale:

Abstrahlwinkel: 120
Ampere: 6,25
CC oder CV: CV
CRI: >90
Dimmbar: Ja, abhängig vom Netzteil
LED Strip Breite: 12
LED Strip Chip Merkmal: ULS
LED Strip Chip Typ: COB
LED Strip Höhe: 6
LED Strip Länge: 15000
LED Strip kürzbar: 50
Lichtfarbe: super warmweiß
Lichtfarbe in Kelvin: 2700
Lumen: 13800
Produktname: COB - ULS IP67
Schutzklasse: IP67
Volt: 24
Watt: 150
Informationen zur Energieeffizienz
Energieeffizienz Klasse F
kwh/1000h: 150
Lumen: 13800
Watt: 150
Nennlebensdauer: 50000 Std.
Schaltzyklen: 35000
Opt. Umgebungstemperatur: 25 °C
EEK Label Download
