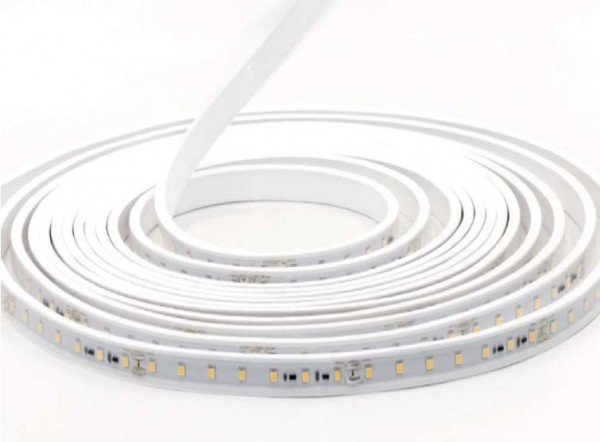

Synergy 21 LED-Flex-Streifen 70 WW DC24V 240W IP65 ULS 50m
- stock: 0
- part no.: 158924
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F001832
- EAN No.: 4038816081018
- weight: 0.5kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip ULS Series
ULS=Ultra Long Strip
Voltage: 24V,
Watt: 240W
CRI>80
Light colour: warm white, 2400K
Brightness: 3900lm
Beam angle: 120°
Protection class: IP65
Number of LEDs: 70/m
Dimensions: 50000*10*3 mm
PCB colour: white, open cable end (360±5mm)
Operating temperature: -25°C to +40°C
Weight: 0.500kg
Can be shortened every 7 LED 10cm
Adhesive tape: yes 3M on the back
Energy efficiency class: A
kWh/1000h: 52.8
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 10 |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| Grösse: | 50000*10*3 |
| LED - Gehäusefarbe: | weiß |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 10 |
| LED Strip Chip Anzahl: | 70 |
| LED Strip Chip Merkmal: | ULS |
| LED Strip Chip Typ: | 2835 |
| LED Strip Höhe: | 3 |
| LED Strip Länge: | 50000 |
| LED Strip kürzbar: | 100 |
| Lichtfabe in Kelvin: | 2400 |
| Lichtfarbe: | warmweiss |
| Lichtfarbe Name: | warmweiß |
| Lichtfarbe in Kelvin: | 2400 |
| Lumen: | 3900 |
| Produktname: | Serie 3528 - ULS IP65 |
| Schutzklasse: | IP65 |
| Volt: | 24 |
| Watt: | 240 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 52.80 |
| Lumen: | 3900.00 |
| Watt: | 48.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
