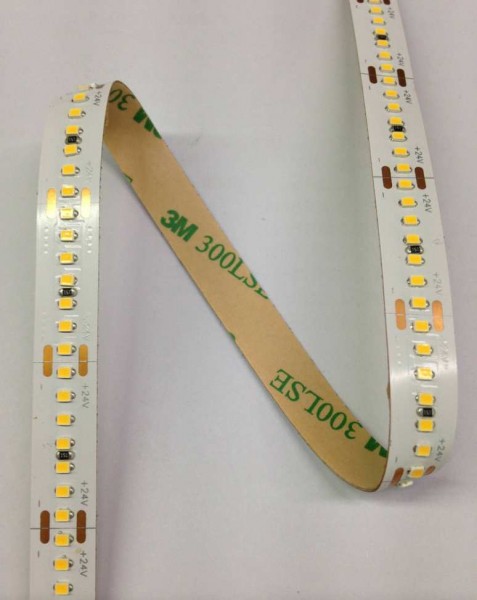

Synergy 21 LED Flex Strip 280 WW DC24V 19,2W/m IP20 CRI>90 2835 *Project*

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Downloads

data sheet DE

data sheet EN

EU RoHS und REACH Erklärung

stock: 0
part no.: 217982
vendor: Synergy 21 LED
mnufacturer no.: S21-LED-F0240074
EAN No.: 4038816217981
weight: 0.67kg
warranty: 24 months
Do you have any questions concerning this product?

Project item: 30 m, Synergy 21 LED flex strips from the 2835 series Voltage: 24 V,... more

Close menu

Product information "Synergy 21 LED Flex Strip 280 WW DC24V 19,2W/m IP20 CRI>90 2835 *Project*"

Project item: 30 m,

Synergy 21 LED flex strips from the 2835 series

Voltage: 24 V,
Power: 19.2 W/m, 120 W ±10 %
Light colour: Warm white, 3000 K, CRI > 90
Luminous flux: 2208 lm/m ±10 %,
Beam angle: 120°
Protection rating: IP20
Number of LEDs: 280*2385 SMD/m
Dimensions: 30,000 × 10 × 3 mm
PCB colour: white, exposed cable ends red-black (150 ± 5 mm)
Operating temperature: -25°C to +40°C
All 7 LEDs can be shortened by 2.7 cm
Adhesive tape: yes, 3M on the back

The strip can be cut to length at the cutting marks using a sharp pair of scissors.
!Warning! The strip must first be tested to ensure it is in working order.
Only cut the strip when the power is off.

Our 3M adhesive tape adheres well, but should only be used as an aid to securing the strip.
There are a variety of fixing options available, such as clips, permanently elastic fixing adhesive, cable ties, etc.

Please note that LED strips must also be cooled.
Ensure that the LED strip does not exceed an operating temperature of 40 °C, as otherwise its service life cannot be guaranteed.
No warranty can be provided for overheated LED strips.

Produktmerkmale:

Abstrahlwinkel:	120
Dimmbar:	ja
LED Strip Breite:	10.30
LED Strip Chip Anzahl:	280
LED Strip Chip Merkmal:	ULS
LED Strip Chip Typ:	2835
LED Strip Höhe:	1,5
LED Strip Länge:	5000
Lichtfarbe:	warmweiss
Lichtfarbe in Kelvin:	3000
Schutzklasse:	IP20
Volt:	24

Informationen zur Energieeffizienz

Energieeffizienz Klasse F
kwh/1000h:	132.000000
Lumen:	10560.000000
Watt:	120.000000
Nennlebensdauer:	35000.000000 Std.
Schaltzyklen:	50000.000000
Opt. Umgebungstemperatur:	25.000000 °C
EEK Label	Download
