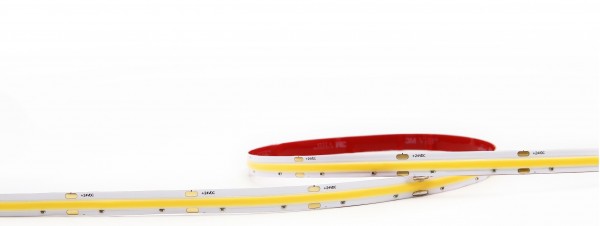

Synergy 21 LED Flex Strip COB - DW (CCT 2 wire) DC24V 75W IP67 SLIM
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 235830
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-003F240203
- EAN No.: 4038816235831
- weight: 0.42kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip Series COB high power
A copper strip is embedded on the reverse side... more
Product information "Synergy 21 LED Flex Strip COB - DW (CCT 2 wire) DC24V 75W IP67 SLIM"
Synergy 21 LED Flex Strip Series COB high power
A copper strip is embedded on the reverse side to improve stability and heat dissipation.
Voltage: 24V, Please note: 2-wire version (see Accessories for controller)
Wattage: 10W/m, 50W total
Light colour: CCT 27006500K, CRI>90
Luminous efficacy: 93 lm/W or 930 lm/m, total: 4650 lm
Beam angle: 120°
Protection class: IP67
Number of LEDs: 512 LEDs/m, total: 2560 LEDs
LED type: COB
Cutting dimensions: 62.5 mm
LED strip dimensions: 5000 × 10.1 × 6.3 mm
Connector width/height: 12.7 × 8.5 mm
Operating temperature: -25°C to +40°C
Adhesive tape: yes, 3M on the reverse side
Please ensure that the LED strip does not exceed the operating temperature of 40°C, as otherwise its service life cannot be guaranteed.
No warranty can be provided for overheated LED strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2,08 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| LED Strip Breite: | 10.1 |
| LED Strip Chip Typ: | COB |
| LED Strip Höhe: | 6,3 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 62,5 |
| Lichtfarbe: | Dualweiß, CCT |
| Lichtfarbe in Kelvin: | 2700-6500 |
| Lumen: | 4650 |
| Produktname: | COB - DW |
| Schutzklasse: | IP67 |
| Volt: | 24 |
| Watt: | 50 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 50.000000 |
| Lumen: | 4650.000000 |
| Watt: | 50.000000 |
| Nennlebensdauer: | 50000.000000 Std. |
| Schaltzyklen: | 35000.000000 |
| Opt. Umgebungstemperatur: | 25.000000 °C |
| EEK Label | Download |
