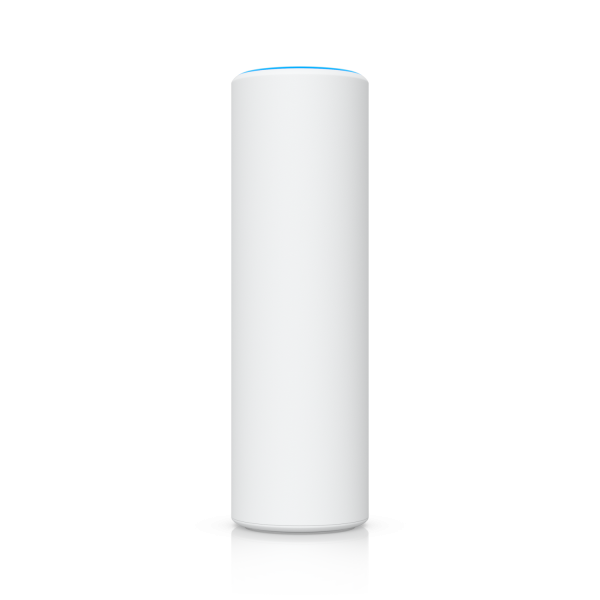

Ubiquiti Wireless AP WIFI7 • BE5000 • 2x2 • Outdoor • 2.5 GbE • UniFi • U7-Mesh
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 256856
- vendor: Ubiquiti
- mnufacturer no.: U7-Mesh
- weight: 0.313kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Compact WiFi 7 access point for indoor and outdoor use with integrated long-range antenna system... more
Product information "Ubiquiti Wireless AP WIFI7 • BE5000 • 2x2 • Outdoor • 2.5 GbE • UniFi • U7-Mesh"
Compact WiFi 7 access point for indoor and outdoor use with integrated long-range antenna system
| &overview | Dimensions | ?48.5 × 159.5?mm (?1.9 × 6.3?) |
|---|---|---|
| WLAN standard | WLAN 7 | |
| Replaceable data streams | 4 | |
| Coverage area | 140?m² (1.500?ft²) | |
| Max. Number of clients | 200+ | |
| Uplink | 2.5?GbE | |
| Mounting | Wall, pole or table stands | |
| Weather protection | IPX6 (with external mounting) | |
| Power supply | PoE | |
| Power | MIMO 5?GHz | 2×2 (DL/UL MU-MIMO) |
| MIMO 2.4 GHz | 2×2 (DL/UL MU-MIMO) | |
| Max. Data rate 5?GHz | 4.3?Gbit/s (BW240) | |
| Max. Data rate 2.4 GHz | 688?Mbit/s (BW40) | |
| Antenna gain 5?GHz | 6?dBi (omni), 10?dBi (directional) | |
| Antenna gain 2.4?GHz | 3?dBi | |
| Max. Transmission power 5?GHz | 24?dBm | |
| Max. Transmission power 2.4?GHz | 23?dBm | |
| Max. BSSIDs | 8 per radio | |
| Supported data rates | 802.11be (WiFi 7) | 7.3?Mbit/s – 4.3?Gbit/s |
| 802.11ax (WiFi 6) | 7.3?Mbit/s – 2.4?Gbit/s | |
| 802.11ac (WiFi 5) | 6.5?Mbit/s – 1.7?Gbit/s | |
| 802.11n | 6.5?Mbit/s – 300?Mbit/s | |
| Features | Wireless mesh | Yes |
| Band steering | Yes | |
| 802.11v BSS & transition | Yes | |
| 802.11r fast roaming | Yes | |
| 802.11k RRM | Yes | |
| Advanced radio management | Yes | |
| Passpoint 2.0 | Yes | |
| Captive Portal | Yes (branding landing page) | |
| Voucher authentication | Yes | |
| Payment-based authentication | Yes | |
| External portals | Yes | |
| Password authentication | Yes | |
| Guest network isolation | Yes | |
| PPSK | Yes | |
| WLAN limitation | Yes | |
| Client isolation | Yes | |
| WLAN schedule | Yes | |
| RADIUS üvia TLS (RadSec) | Yes | |
| Dynamic RADIUS VLAN | Yes | |
| Hardware | Max. Power consumption | 13?W |
| PoE adapter included | Yes | |
| Voltage range | 42.5–57?V?DC | |
| Network port | 1×?2.5-GbE RJ45 | |
| Weight | 313?g | |
| Walkäuse & structure | Walking & use material | UV-stabilised polycarbonate |
| Material assembly | UV-stabilised polycarbonate | |
| LEDs | System: White/blue | |
| Channel bandwidths | HT/VHT/HE/EHT 20–240?MHz | |
| NDAA compliant | Yes | |
| Certifications | CE, FCC, IC | |
| Environment | Operating temperature | –30 to 60?°C |
| Humidity | 5–95?% (non-condensing) | |
| Software | App requirements | UniFi iOS = 10.32.1 / Android = 10.35.1 |
