ALLNET - Kiosk Octa Core Android board (1G+8G) FullHD, Ethernet, Wlan, ALL-DS831
product pictures similar, may differ from the product description!
-
Last Stock Article
- stock: 0
- part no.: 135812
- vendor: ALLNET
- mnufacturer no.: ALL_DS831_Kiosk
- EAN No.: 4038816135810
- weight: 0.08kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Abverkauf EOL
ALLNET DS831 Kiosk control board integrates multimedia decode,LCD... more
Product information "ALLNET - Kiosk Octa Core Android board (1G+8G) FullHD, Ethernet, Wlan, ALL-DS831"
Abverkauf EOL

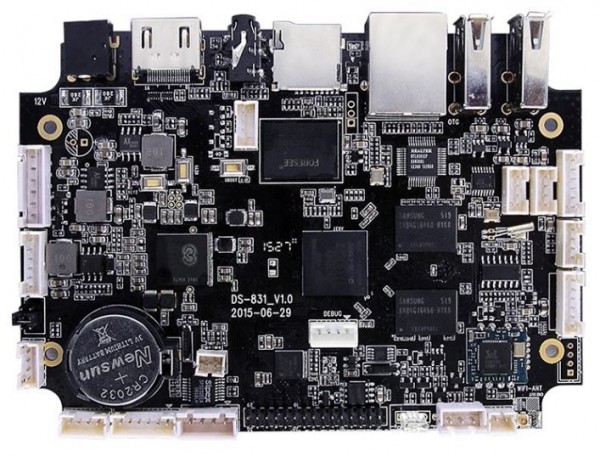

ALLNET DS831 Kiosk control board integrates multimedia decode,LCD driver,Ethernet,HDMI,WIFI,bluetooth in one,supporting most current fashionable video and image format decode,supporting HDMI video output,dual eight bits LVDS driver,able to drive various TFT LCD screen,greatly simplifying whole player system design,very suitable for HD network player box,video advertising player and frame advertising player.
|
Main Hardware Index | |
| CPU | Allwinner A83T,Octa-Core,main frequency 2GHz |
| Internal Memory | 1G |
| Built-in Memory | 8gb EMMC |
| Built-in ROM | 2KB EEPROM |
| Decoding Definition | Maximum support 1080P |
| Operating System | Above Android 4.X |
| Play Mode |
Support loop, timing, inter-cut and variable play modes |
| Network Support | Ethernet,support WiFi/bluetooth 4.0,wireless peripheral extension |
| Video Playing | Support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 etc. |
| Image Format | Support BMP,JPEG,PNG,GIF |
| USB2.0 Ports | 2 USB HOST,2 USB Sockets |
| Serial Ports | 3 serial ports sockets(defaulting include one 232 serial port) |
| TVIn | CVBS input 2 channel,support N,P System |
| GPS | External GPS(optional) |
| WIFI,BT | Built-in WIFI,BT4.0(optional) |
| 3G | Support 3G dongle,WCDMA,EVDO,4G NetMosa,support voice call |
| Ethernet | 1,10M/100M self-adapting Ethernet |
| SD Card |
TF(Micro SD)card |
| LVDS output | 1 single/dual channel,can drive 50/60Hz LCD panel directly |
| HDMI output | 1,support 1080P output |
| Audio And Video Output | Support left and right channels output, built-in dual 4R/20W,8R/10W amplifier |
| RTC Real Time Clock | Support |
| Timing Switch | Support |
| System Upgrade | Support local SD,USB upgrade |
