LoRa MCF88 LoRaWAN Multi Multi I/O Module

LoRa MCF88 LoRaWAN Multi Multi I/O Module
product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us
Description
Description
LoRa MCF88 LoRaWAN Multi Multi I/O Module LoRaWAN® Multi I/O module This device... more
Close menu
Product information "LoRa MCF88 LoRaWAN Multi Multi I/O Module"

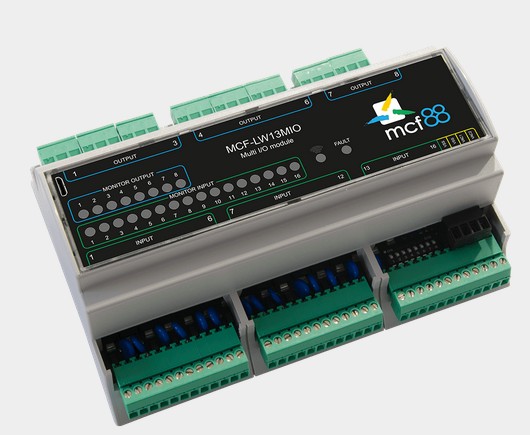

LoRa MCF88 LoRaWAN Multi Multi I/O Module

LoRaWAN® Multi I/O module

This device transmits the state of its 16 inputs and controls 8 outputs through the LoRaWAN® network. All these inputs and outputs are galvanically isolated. It can be used for industrial process control, home automation, water treatment, agriculture irrigation and similar applications.

Technische Daten:

- CPU Cortex M0 - RTC - EEProm 32KB - Flash 96KB - Encryption AES 128 bit - Class C LoRaWAN® stack EU868, AS923 - 16 opto-isolated input AC-DC, range 5-24Vac/dc - 8 relay output with COM, NO, NC contacts carrying 5Amp@230Vac - USB port for IoT node setup ad FW upgrade - CANBUS interface - Power supply 24 Vac/dc - Storage temperature range -20 + 80C° - Working temperature range -10 + 70C° - DIN (EN 60715) mounting enclosure, 9 modules
