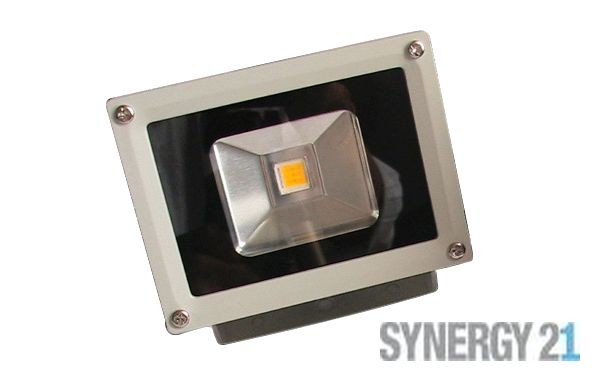

Synergy 21 LED Spot Outdoor floodlight 10W gray housing - blue V2
- stock: 0
- part no.: 128109
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-TOM01041
- EAN No.: 4038816052414
- weight: 0.69kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE data sheet EN EU RoHS und REACH ErklärungWith emergency power function (from 80V approx. 20% brightness) and
reversible overheating protection
Dimmable (leading edge and trailing edge phase dimmer)
Single-pane safety glass
Stainless steel mounting bracket
IP65 suitable outdoor cable H05RNF without plug (0.7m)
With emergency power function and overheating protection
Operating voltage: > AC 207-253V/50-60Hz
LED: 10Watt high-power chip
Beam angle: 120°
Range approx. 15 metres
Lumen: 900lm, 90lm/watt
Blue: 460-470nm
Housing: Injection-moulded aluminium in grey
Dimmable: yes (leading edge and trailing edge phase dimmer)
Operating temperature: -10°C to +55°C
Protection class: IP65 (water jet-proof)
Dimensions: (l*w*h) 115*90*105mm
Energy efficiency class: A+
kWh/1000h: 10
Produktmerkmale:
Abstrahlwinkel: | 120 |
Betriebstemperatur: | -25°C bis +55°C |
CRI: | >80 |
Dimmbar: | TRIAC |
Grösse: | 115*90*105 |
LED - Gehäusefarbe: | grau |
LED - Gehäusematerial: | Aluminium |
Lichtfarbe: | blau |
Schutzklasse: | IP65 |
Volt: | 230 |
Watt: | 10 |
Energieeffizienz Klasse G | |
---|---|
kwh/1000h: | 10,00 |
Lumen: | 900 |
Watt: | 10,0 |
Nennlebensdauer: | 35000 Std. |
Schaltzyklen: | 50000 |
Opt. Umgebungstemperatur: | 25 °C |
EEK Label | Download |
