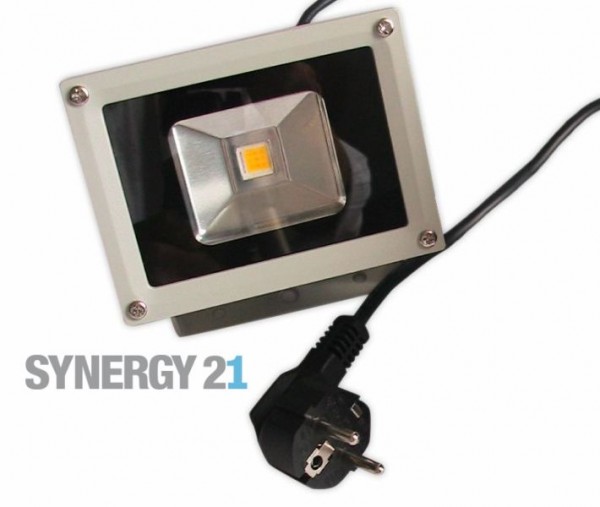

Synergy 21 LED Spot Outdoor floodlight 10W gray housing - UV
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 81899
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-TOM00894
- EAN No.: 4038816995452
- weight: 0.685kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
EU RoHS und REACH Erklärung
Operating voltage: AC 85-265V
LED: 10Watt high-power chip
Beam angle: 120°
Lumen: 900lm,... more
Product information "Synergy 21 LED Spot Outdoor floodlight 10W gray housing - UV"
Operating voltage: AC 85-265V
LED: 10Watt high-power chip
Beam angle: 120°
Lumen: 900lm, 90lm/watt
Wavelength: 450nm
Housing: Injection moulded aluminium in grey
Operating temperature: -10°C to +55°C
Protection class: IP65 (water jet-proof)
Dimensions: (l*w*h) 115*90*105mm
Energy efficiency class: A+
kWh/1000h: 10
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Betriebstemperatur: | -25°C bis +55°C |
| CRI: | >80 |
| Dimmbar: | TRIAC |
| Grösse: | 115*90*105 |
| LED - Gehäusefarbe: | grau |
| LED - Gehäusematerial: | Aluminium |
| Lichtfarbe: | UV |
| Schutzklasse: | IP65 |
| Volt: | 230 |
| Watt: | 10 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 10,00 |
| Lumen: | 900 |
| Watt: | 10,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
